Shoring system for very large loads in bridge constructions as well as for special applications in industrial construction

VARIOKIT VST Heavy-Duty Tower

A modular shoring system for very large loads in bridge construction and special industrial applications

The VST Heavy Duty Shoring Tower is a modular shoring system, providing a capable, robust yet cost-effective solution for bridge and other infrastructure and industrial construction.

Ideally suited for projects that require the central transfer of large loads, it can be erected and used either as an individual tower, main beam or birdcage scaffolding.

VARIOKIT VST Heavy-Duty Tower in action

Fast assembly

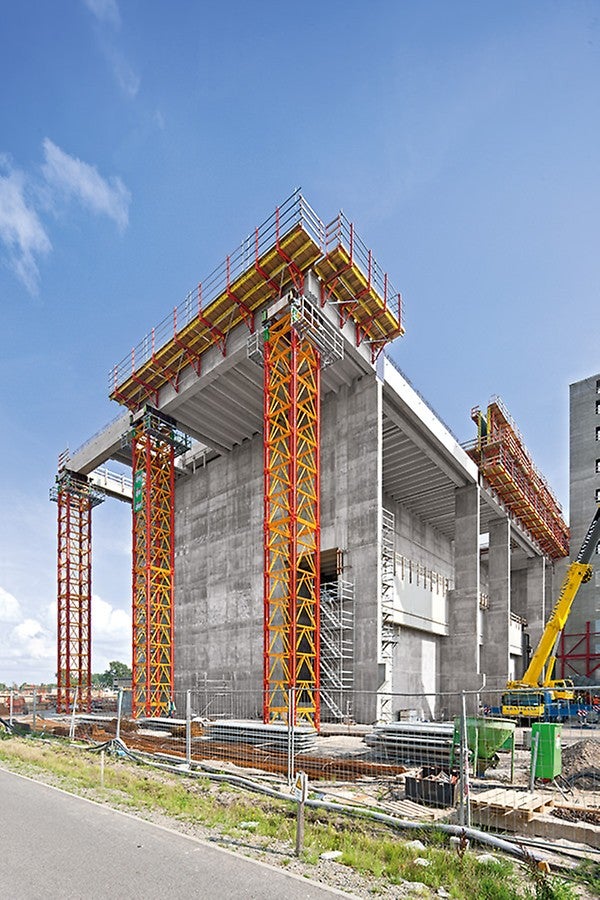

with bolted connections and pre-assembled tower segments up to 10 m.
Keep costs under control

The modular system is available in our rental parks, and uses the minimum parts to reduce time, labour costs and transportation
Simple height adjustment

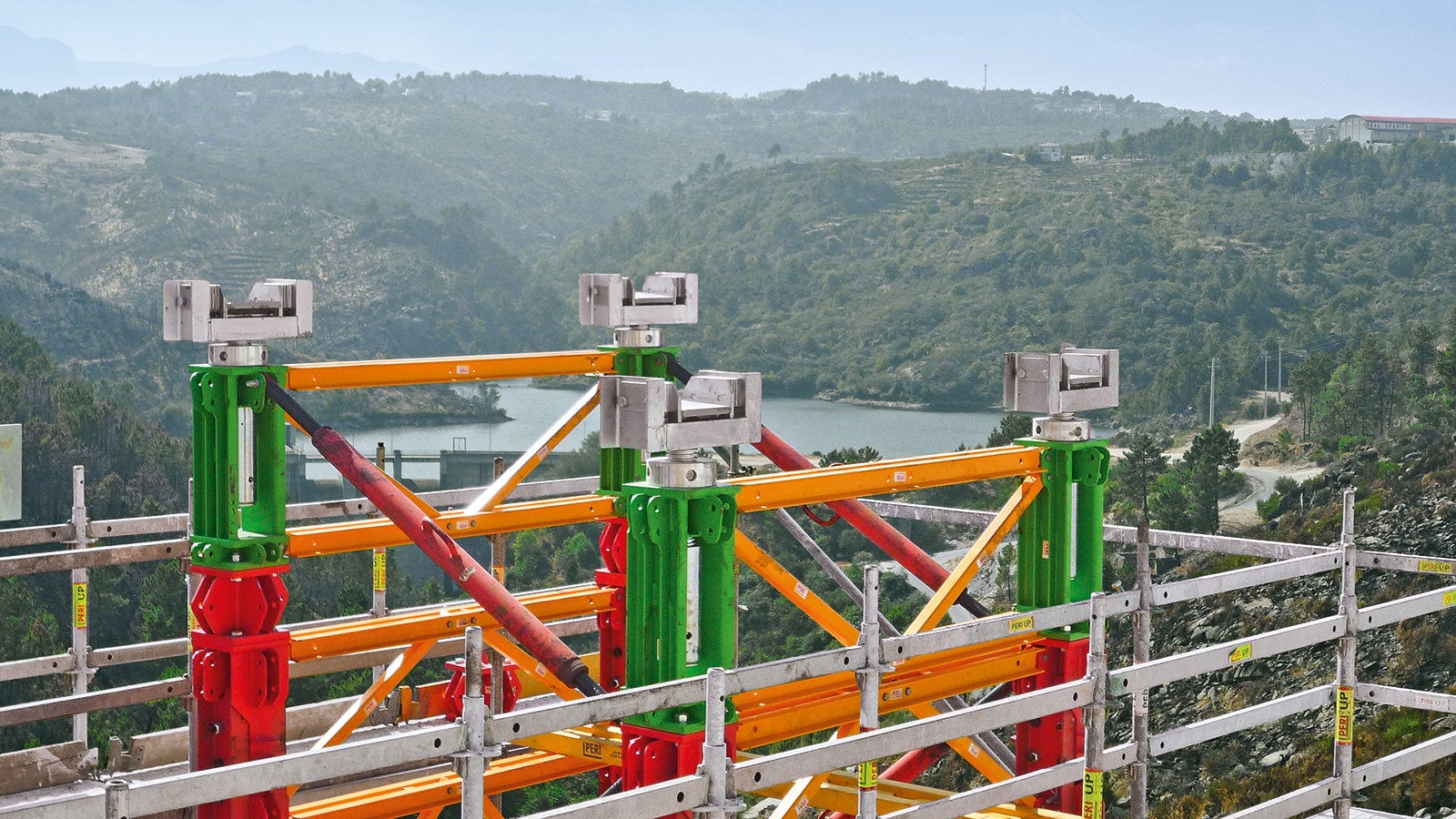

Hydraulics adjust the head spindle even under full load

Additional information

Variations

Using standardised system components, variations of the system can be designed to suit individual project requirements:

4-leg towers dimensions of 2m x 2m in its standard configuration. Or in each statically required dimension up to a max. of 6.5m x 6.5m

Towers with additional legs in areas that have to bear heavy loads, the load-bearing capacity can be doubled in-situ through the use of additional legs

Birdcage scaffold by connecting individual shoring tower frames, it is also possible to increase the cross-sectional stiffness in the second axis

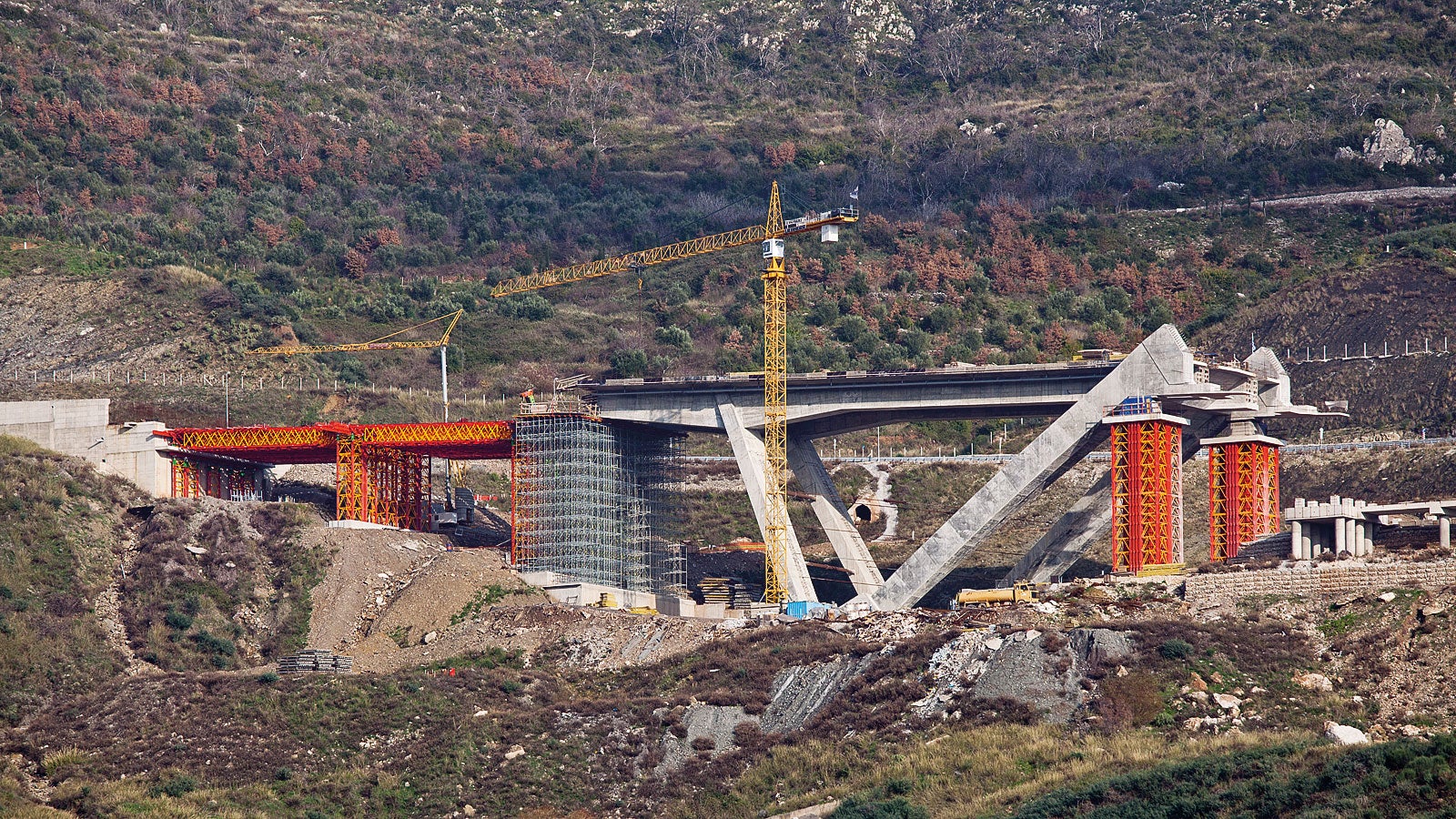

Main beam frames in the area of abutments and piers, the system can also be implemented as main beam frames up to a height of 10m (with the head support)
