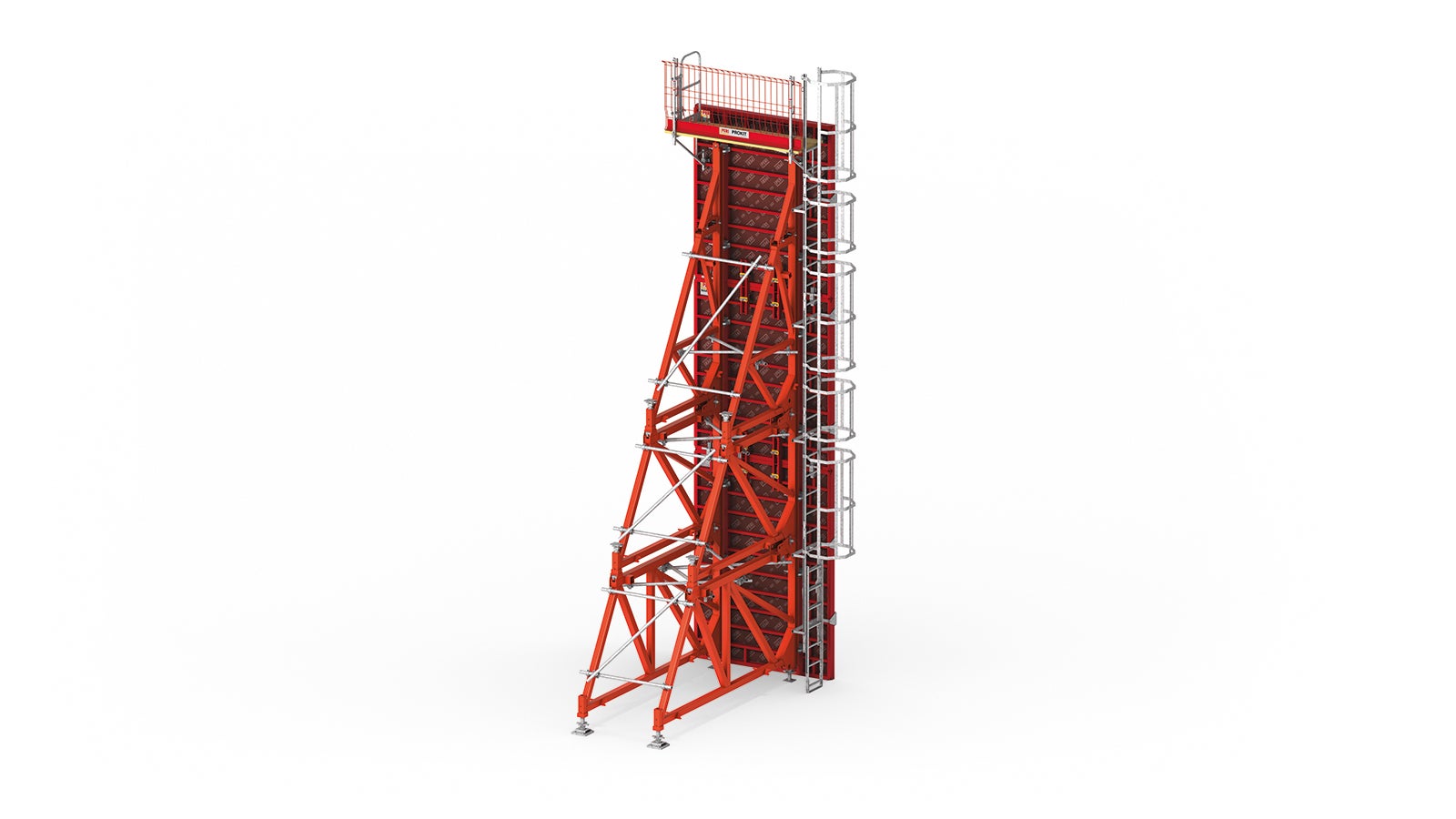

SB Stützbock: Zuverlässiges Betonieren von einhäuptigen Wänden bis 8,75 m Höhe.

SB Brace Frame

The adaptable single-sided formwork system for operations up to 8.75 m high

SB Brace Frames transfer the fresh concrete pressure into the sub-structure and foundations during single-sided concreting of structural elements. It can be used with all PERI wall formwork systems and in addition, SB Brace Frames can be used as horizontal heavy-duty brackets.

SB Brace Frame in action

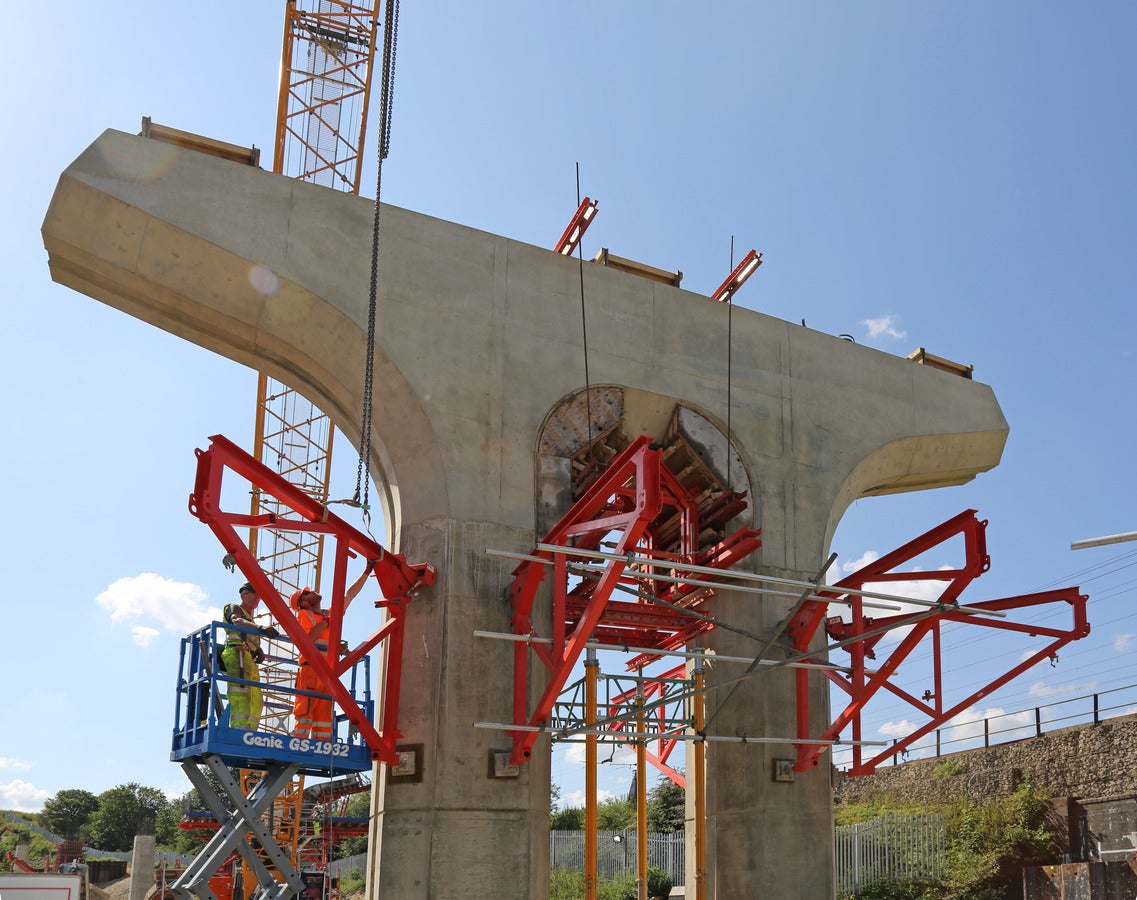

  • Very versatile use with all PERI wall formwork as well as horizontal heavy-duty brackets.
    Highly versatile system

    Integrates with PERI wall formwork systems as well as horizontal heavy-duty brackets for complex infrastructure and building projects



    Project: Luton DART Rail Link

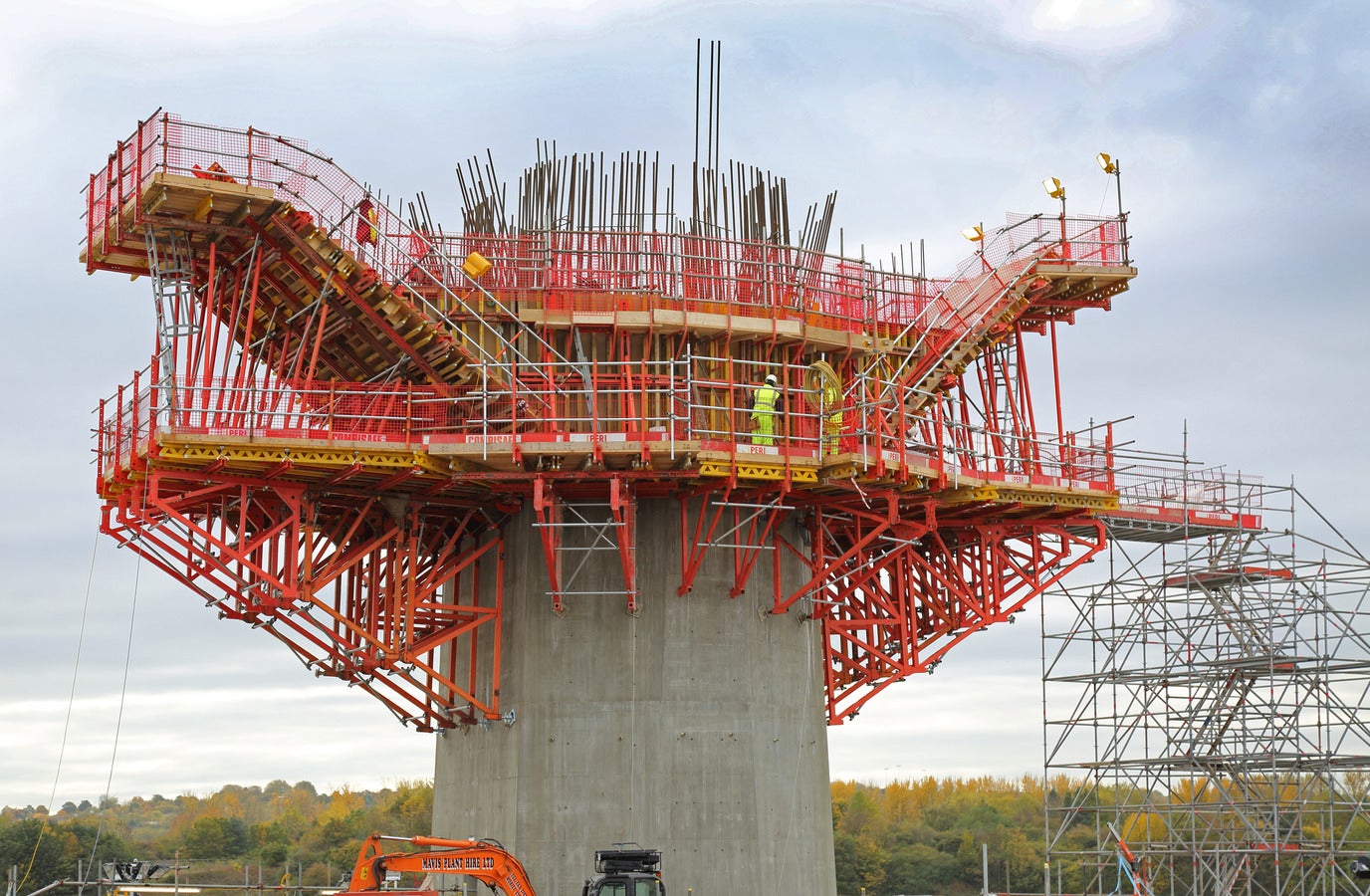

  • as all required connection parts are already mounted on the Brace Frame.
    Rapid connections with minimum components

    Connecting parts are already mounted on the Brace Frame to ensure fast and smooth assembly and dismantling operations on site



    Project: Mersey Gateway

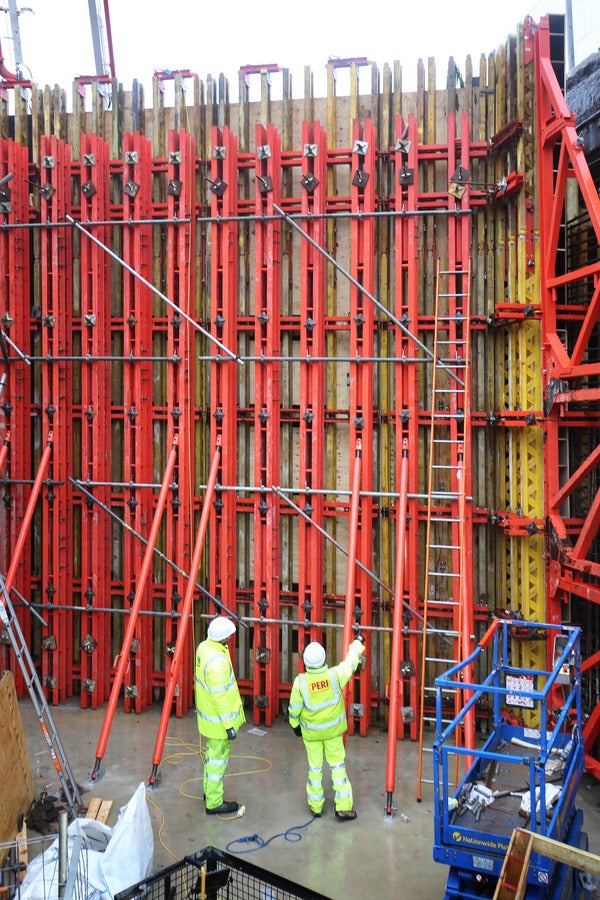

  • Easy to transport through matching the individual component geometries to suit truck and container dimensions.
    Easy transportation

    Each individual component can be configured to suit truck and container dimensions.



    Project: Regent Street Flyover

Product Data Sheet

Technical specifications
System type
Support Frame
Fresh concrete pressure
Can be used up to 60 kN/m²
Load
Tensile and compressive force: DW 15 anchor system: 180 kN, DW 20 anchor system: 300 kN, DW 26 anchor system: 500 kN
Other
With the PERI V-tie holder and the advance coupler, the tie rod can be installed precisely at an angle of 45°. This means safe load transfer and thus maximum stability for the support frame and formwork.
Technical specifications
System type
Support Frame
Fresh concrete pressure
Can be used up to 60 kN/m²
Load
Tensile and compressive force: DW 15 anchor system: 180 kN, DW 20 anchor system: 300 kN, DW 26 anchor system: 500 kN
Other
With the PERI V-tie holder and the advance coupler, the tie rod can be installed precisely at an angle of 45°. This means safe load transfer and thus maximum stability for the support frame and formwork.
