The lightweight stair tower for flexible access solutions

PERI UP Flex Stair 75

The lightweight stair tower for quick and flexible access solutions

PERI UP Flex 75 Stair is a lightweight, efficient and versatile access system ideal for use on construction projects of all scales and sectors such as refurbishment, building construction and infrastructure.

The lightweight aluminium flights of stairs with 75cm widths are mounted on ledgers of the PERI UP modular scaffolding. The 4-legged stair towers can be configured with alternating staircase units or staircase units in the same direction and heights of up to 100m.

The PERI UP Flex Stair 75 is designed to accommodate 2.00 kN/m² loads and serves as access to working areas or around construction sites.

All of the safety systems expected from PERI UP scaffolding are included such as gap-free, low-slip decks, self-locking ledgers, anti-uplift decks and reduced manual handling risk.

Stairwell Access

Access in stairwells requires a compact access solution on the inside of buildings. For this purpose, shorter ledgers are connected at the same height at 90° angles while using flights of stairs with smaller run lengths and heights. At the same time, the stairwell staircases serve as working platforms for carrying out further work on the sides of the walls. With standard components, access can be created to all floors in height increments of 25cm.

PERI UP Flex Stair 75 in action

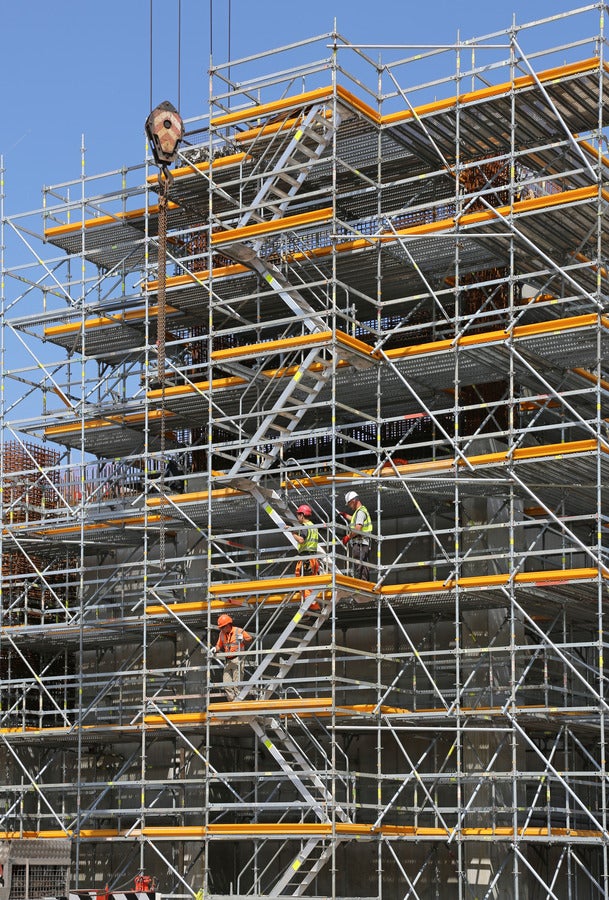

  • Easily adapted for accessing building openings with brackets and small flights of stairs – regardless of storey heights.
    Highly flexible and versatile

    A system that can be configured to suit almost any building geometry and dimension.  Openings at different levels and varying storey heights are easily accommodated to provide safe access at all levels.

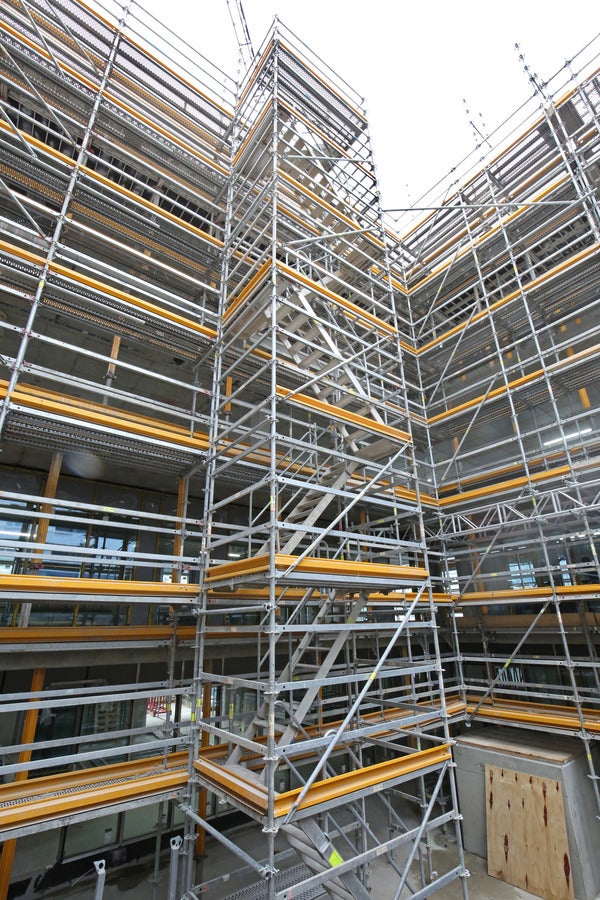

  • Flexible assembly through the 25 cm grid dimension, all bays can be completely closed even in the smallest of spaces.
    Easy assembly

    The the 25cm grid dimension of PERI UP ensures all bays can be completely closed even in the smallest of spaces.

    Short flights of stairs with 75cm widths offer maximum adaptability for small areas and narrow openings.

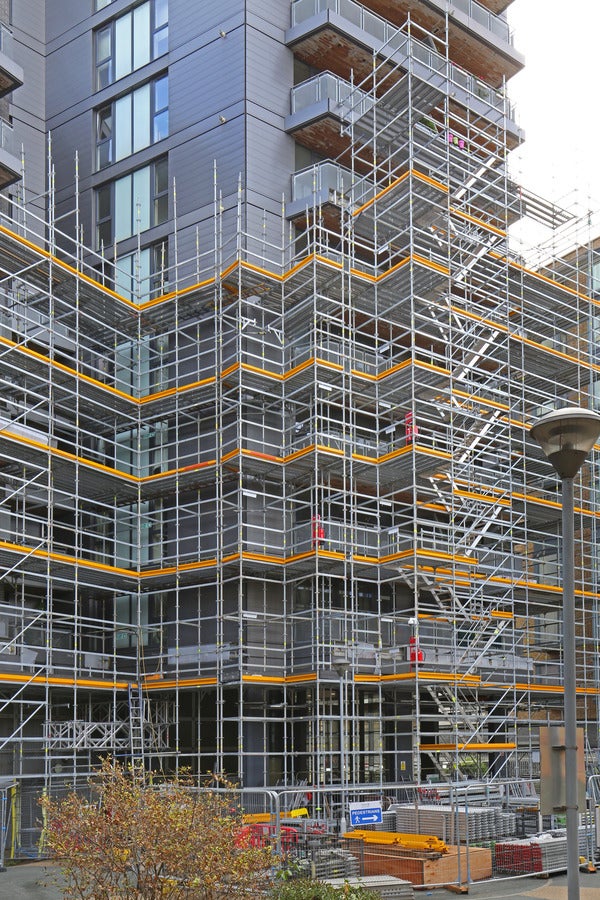

  • Fast installation with only a minimum number of ledgers and anchors.
    Rapid assembly and dismantling with no compromise to safety

    A minimum number of different component parts are required, nearly all with built-in safety features such as the PERI UP gravity lock.

Product Data Sheet

Technical specifications
Scaffold type
Scaffolding Stairs
Weight
Vertical meters in opposite directions in a 2.50 m variant: approx. 85 kg Vertical meters in the same direction in a 3.00 m variant: approx. 115 kg
Type of use
Access Technology
Body heights
According to the rules: up to 66 meters, beyond that: proof in individual cases
Scaffolding grid
Metric
Structure principle
With integrated stair safety without additional components
Approval
Standard design according to EN 12810
Norm
DIN EN 12810 and 12811; load class 1 to 4 (0.75 kN/m² - 3.00 kN/m²); Load class 1 to 6 (0.75 kN/m² - 6.00 kN/m²)
Permissible load
For flights of stairs and coverings: 2.0 kN/m², for the entire construction up to 66 m: 2.0 kN/m² over a run length of 20 m
Other
Adaptations to the building: 1.0 m and 0.5 m height adjustments via console or in the tower 0.2 m height adjustments via stair bars, counter-rotating and co-rotating stair tower as a means of access for temporary work at high workplaces; Horizontal ledger can be mounted in advance; Gravity Lock secures ledgers as soon as they are inserted into the scaffolding node; integrated pad protection; Use of standard handles with pressed-in tubular pins
Technical specifications
Scaffold type
Scaffolding Stairs
Weight
Vertical meters in opposite directions in a 2.50 m variant: approx. 85 kg Vertical meters in the same direction in a 3.00 m variant: approx. 115 kg
Type of use
Access Technology
Body heights
According to the rules: up to 66 meters, beyond that: proof in individual cases
Scaffolding grid
Metric
Structure principle
With integrated stair safety without additional components
Approval
Standard design according to EN 12810
Norm
DIN EN 12810 and 12811; load class 1 to 4 (0.75 kN/m² - 3.00 kN/m²); Load class 1 to 6 (0.75 kN/m² - 6.00 kN/m²)
Permissible load
For flights of stairs and coverings: 2.0 kN/m², for the entire construction up to 66 m: 2.0 kN/m² over a run length of 20 m
Other
Adaptations to the building: 1.0 m and 0.5 m height adjustments via console or in the tower 0.2 m height adjustments via stair bars, counter-rotating and co-rotating stair tower as a means of access for temporary work at high workplaces; Horizontal ledger can be mounted in advance; Gravity Lock secures ledgers as soon as they are inserted into the scaffolding node; integrated pad protection; Use of standard handles with pressed-in tubular pins
Standard applications
Compatible with
PERI UP scaffolding construction kit, VARIOKIT engineering construction kit
Standard applications
Compatible with
PERI UP scaffolding construction kit, VARIOKIT engineering construction kit
Show More
Show Less

Additional information

The lightweight stair tower for flexible access solutions
The lightweight stair tower for flexible access solutions

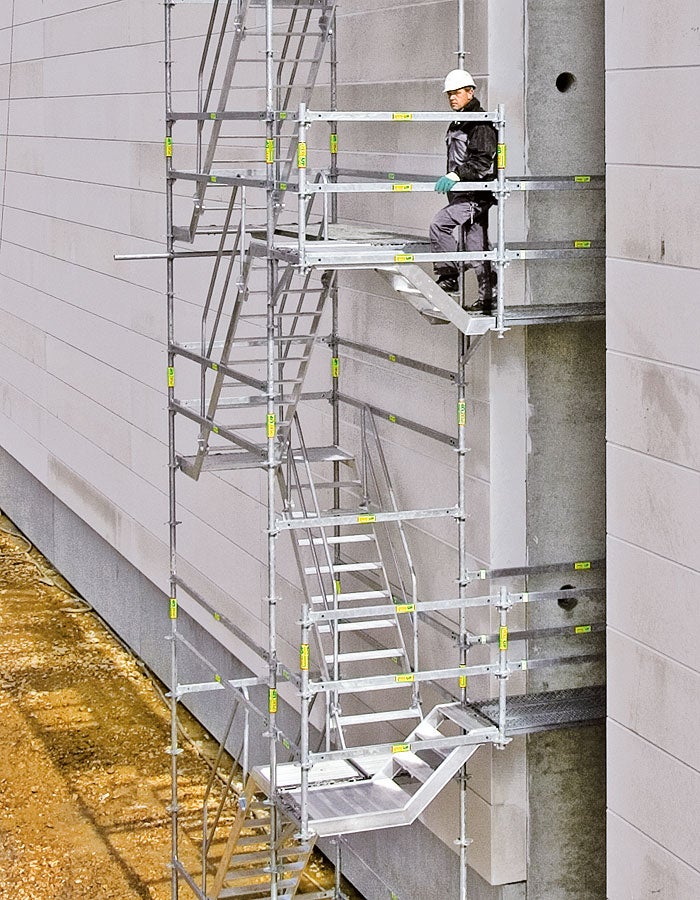

Height adjustments to building openings are carried out by means of short flights of stairs and externally mounted brackets – regardless of the floor height.
Height adjustments to building openings are carried out by means of short flights of stairs and externally mounted brackets – regardless of the floor height.
Flexible assembly through the 25 cm grid dimension, all bays can be completely closed even in the smallest of spaces.
Flexible assembly through the 25 cm grid dimension, all bays can be completely closed even in the smallest of spaces.

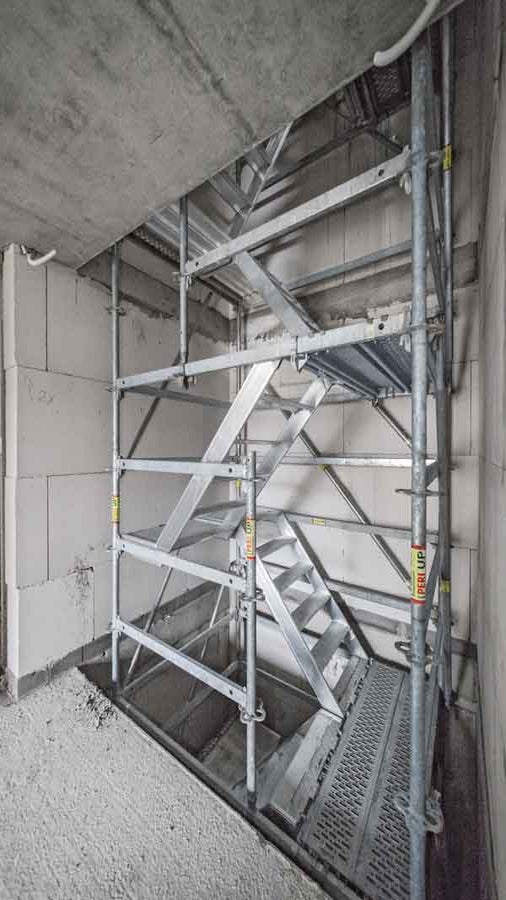

PERI UP Flex Stair Alu 75: Short flights of stairs with 75 cm widths offer maximum adaptability also for small areas and narrow geometries.
PERI UP Flex Stair Alu 75: Short flights of stairs with 75 cm widths offer maximum adaptability also for small areas and narrow geometries.

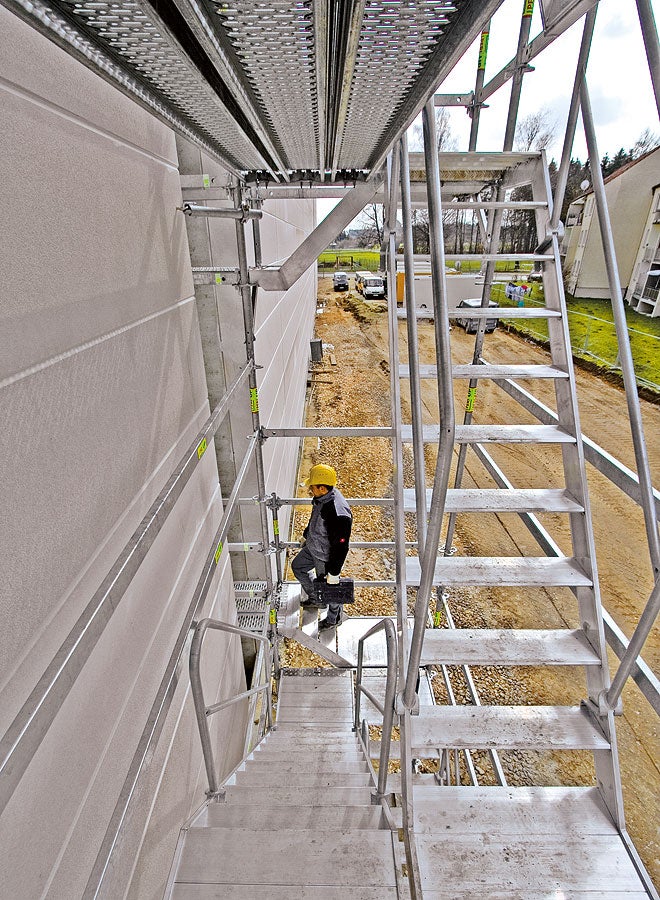

PERI UP Flex Stair Alu 75: Exit stairs enable to reach every floor level.
PERI UP Flex Stair Alu 75: Exit stairs enable to reach every floor level.
Lightweight and highly adaptable, suitable for any project
Height adjustments to building openings are easily accommodated using short flights of stairs and externally mounted brackets – regardless of the floor height.
Guardrails via the PERI UP ledger and stringers provide complete protection when working at height, as well as integrated toeboards to protect those below
Short flights of stairs with 75cm widths provide a simple solution for confined spaces such as lift shafts and stairwells
Exit stairs enable to reach every floor level.
