Extremely adaptable and with a high load-bearing capacity

PERI UP Flex Facade Scaffolding

Pick up speed without compromising safety

The PERI UP scaffolding kit can meet almost any application required including facade access.  Integrating all of the normal safety features of PERI UP, the highly efficient and intuitive system enables rapid installation without compromising safety.

The system can be used for high load-bearing facade scaffolds, with the decking mounted directly on to the ledgers with bay lengths adjustable in 25cm increments. Connecting other system components to the standards is possible using the 50cm node spacings.  Built in safety is provided through the integrated lock against lifting of decks, and the gravity lock for safe and secure ledgers.

Save time and costs, keep on schedule and realise the benefits of the highest levels of quality and safety with PERI UP Flex Facade.

PERI UP Flex Facade Scaffolding in action

  • Extremely adaptable and with a high load-bearing capacity
    Extremely versatile

    Adjustments are carried out in a uniform grid arrangement of 25cm which provides a high level of flexibility for complex facade scaffolding

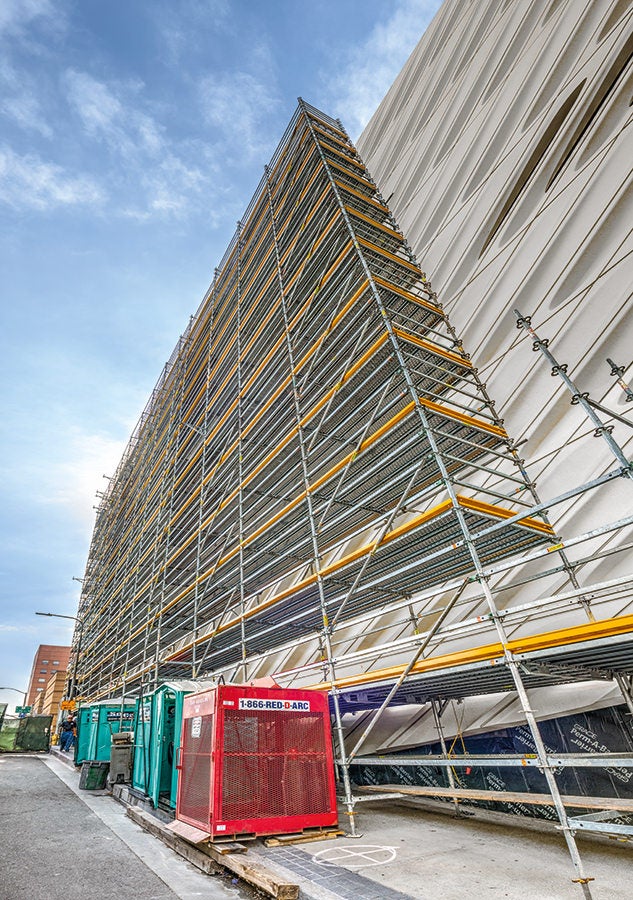

  • The scaffolding width can be choosen freely selectable and can be adapted to met a wide range of requirements.
    Gap-free decking

    Ensure the safety of workers and the general public.  Each bay has a gap-free deck thanks to the versatile system to bay widths, lengths and complex geometries

  • PERI UP flex Modular Working Scaffold: Circular structures can also be easily scaffolded with PERI UP flex.
    High load-bearing capacity

    Up to Load Class 6 depending on the assembly.

Product Data Sheet

Technical specifications
Scaffold type
Facade
Type of use
Working scaffold, protective scaffold
Construction type
Steel
Width class
SW 03, SW 06, SW 09, SW 12, SW 15
Load class
LK 1, LK 2, LK 3, LK 4, LK 5, LK 6
Body heights
Up to 24 meters
Structure principle
Advanced assembly system, according to TRBS 2121-1
Norm
EN 12810 and EN 12811
Field length
50 cm, 75 cm, 100 cm, 125 cm, 150 cm, 200 cm, 250 cm, 300 cm
Permissible load
Load class 1 to 4 (0.75 kN/m² - 3.00 kN/m²); Load class 1 to 6 (0.75 kN/m² - 6.00 kN/m²)
Technical specifications
Scaffold type
Facade
Type of use
Working scaffold, protective scaffold
Construction type
Steel
Width class
SW 03, SW 06, SW 09, SW 12, SW 15
Load class
LK 1, LK 2, LK 3, LK 4, LK 5, LK 6
Body heights
Up to 24 meters
Structure principle
Advanced assembly system, according to TRBS 2121-1
Norm
EN 12810 and EN 12811
Field length
50 cm, 75 cm, 100 cm, 125 cm, 150 cm, 200 cm, 250 cm, 300 cm
Permissible load
Load class 1 to 4 (0.75 kN/m² - 3.00 kN/m²); Load class 1 to 6 (0.75 kN/m² - 6.00 kN/m²)
Show More
Show Less

Additional information

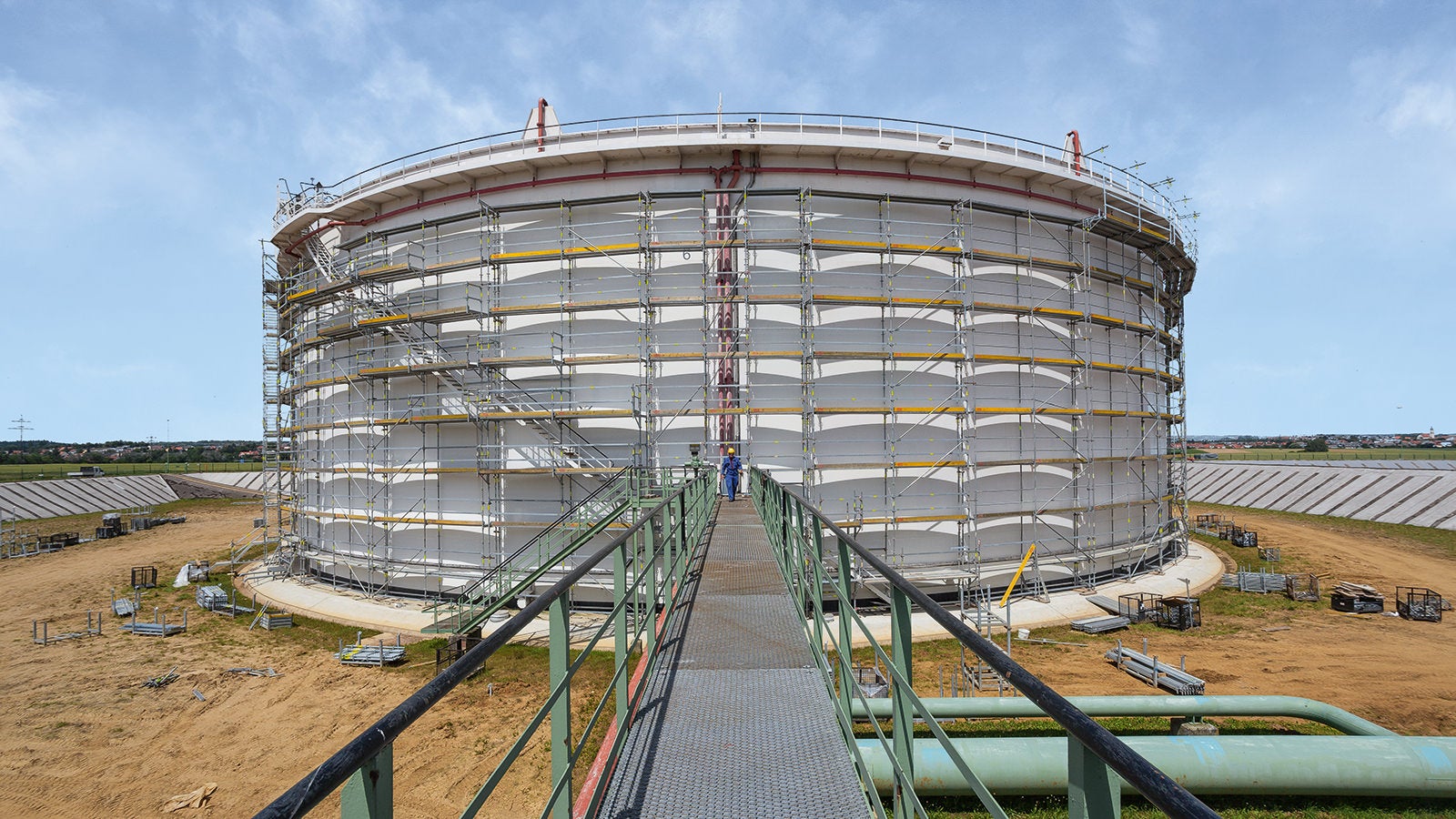

PERI UP flex Modular Working Scaffold: Circular structures can also be easily scaffolded with PERI UP flex.
PERI UP flex Modular Working Scaffold: Circular structures can also be easily scaffolded with PERI UP flex.

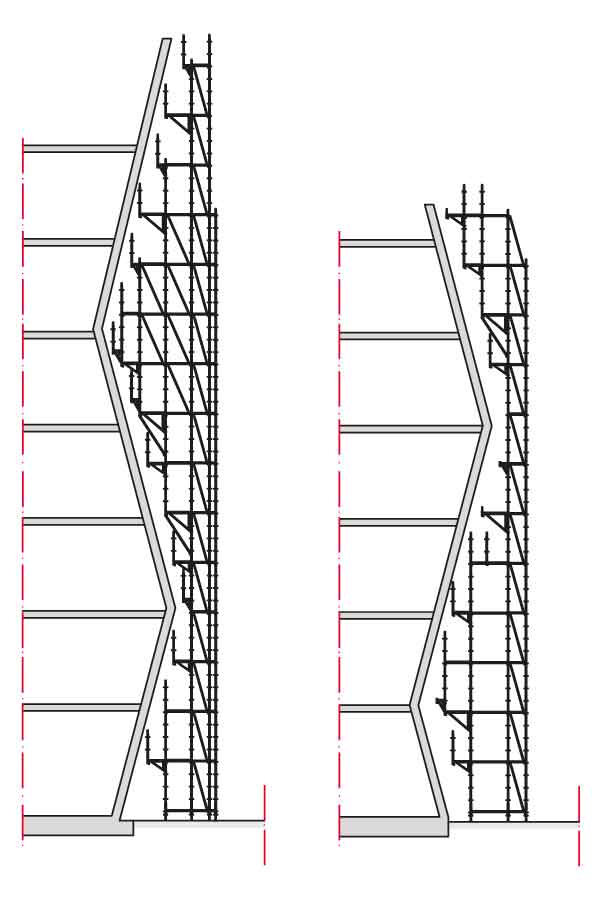

Adjustments to the building shape are carried out in a uniform grid arrangement of 25 cm which provides a high level of flexibility for complex facade scaffolding
Adjustments to the building shape are carried out in a uniform grid arrangement of 25 cm which provides a high level of flexibility for complex facade scaffolding

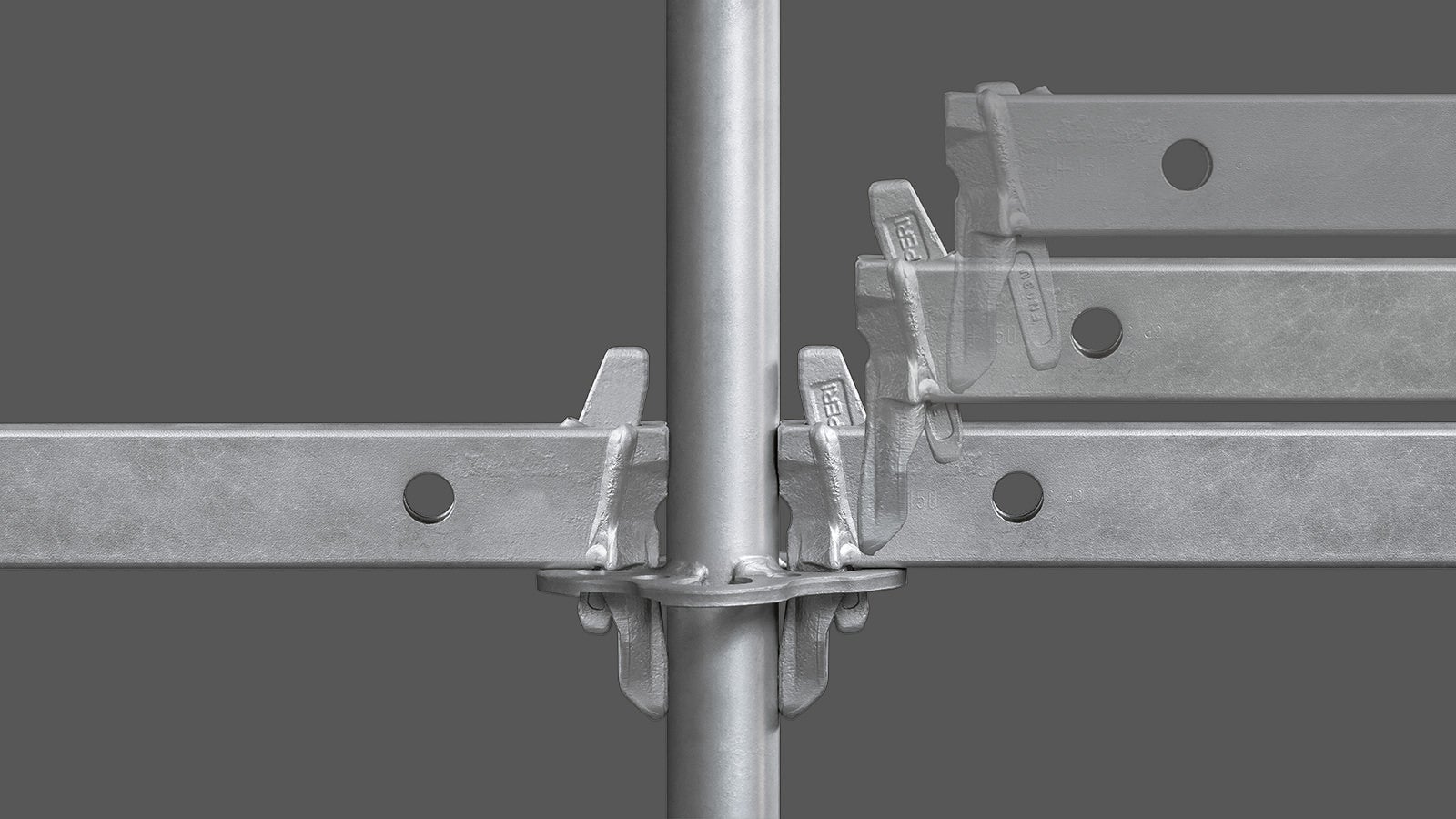

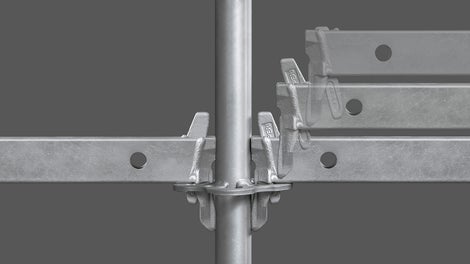

During erection, the wedge of the waler falls into the Rosett joints due to its own gravity and locks automatically.
During erection, the wedge of the waler falls into the Rosett joints due to its own gravity and locks automatically.

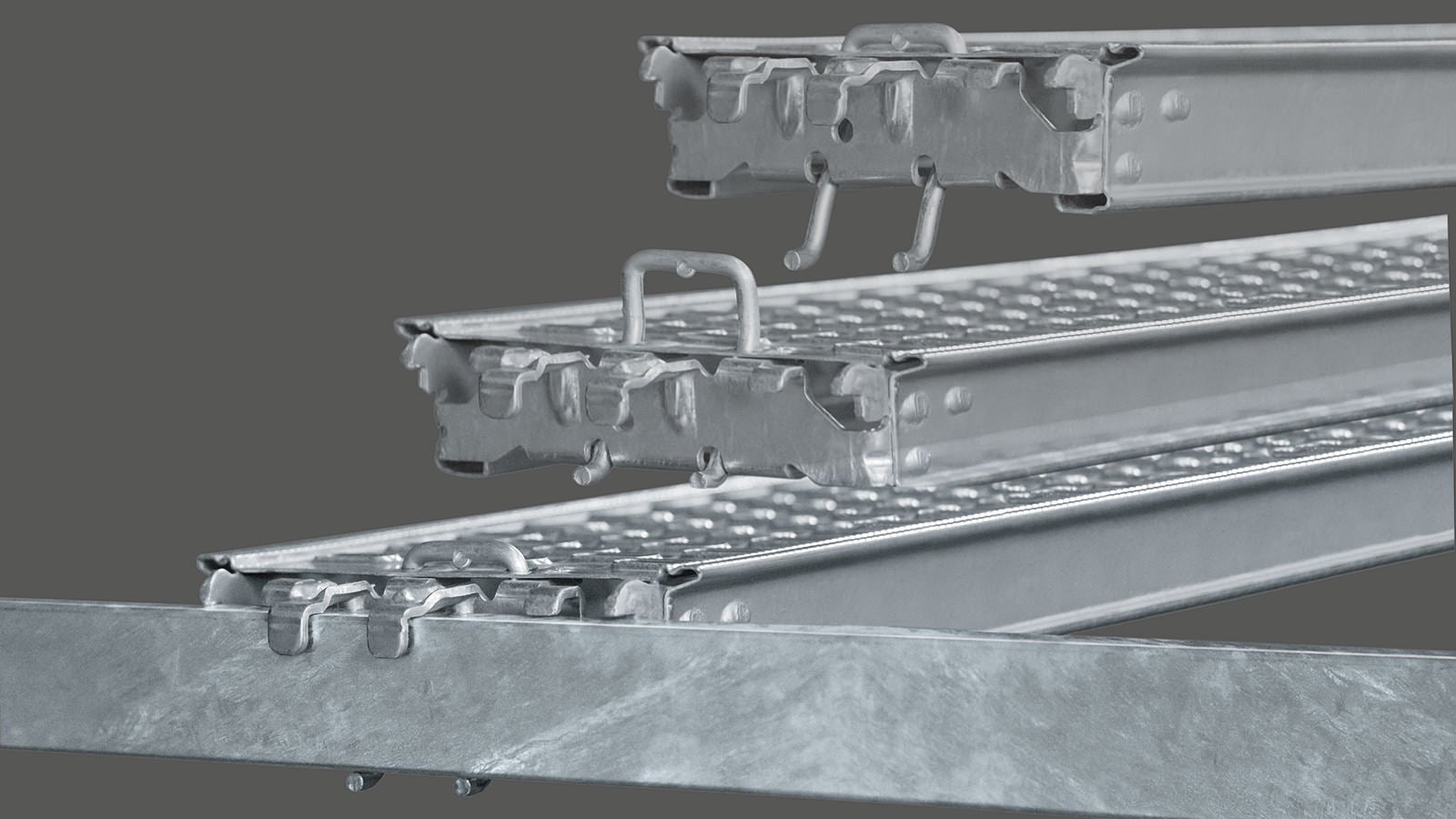

The decking is mounted directly on the steel ledgers and held securely in position without requiring any additional components.
The decking is mounted directly on the steel ledgers and held securely in position without requiring any additional components.
Circular structures can also be easily scaffolded with PERI UP flex.
Adjustments to the building shape are carried out in a uniform grid arrangement of 25 cm which provides a high level of flexibility for complex facade scaffolding
During erection, the wedge of the waler falls into the Rosett joints due to its own gravity and locks automatically.
The decking is mounted directly on the steel ledgers and held securely in position without requiring any additional components.
