PERI tie systems: The DK and SK tie systems serve to ensure subsequent, reliable sealing of tie points.

PERI Tie Technology

High quality, reliable sealing of tie points

For efficient operations on site and high finish quality, the sealing of tie points is an important part of the concreting process.

With the DK and SK Tie Systems, tie points can be reliably sealed using concrete cones and a specially-developed sealing compound.

The DK sealing cone system is:

  • waterproof
  • gas impermeable
  • fire-resistant
  • soundproof
  • suitable for architectural concrete

The SK tie cone system is:

  • waterproof
  • gas impermeable
  • fire-resistant
  • soundproof
  • suitable for strongrooms and architectural concrete

PERI Tie Technology in action

  • PERI Tie Technology: For all wall formwork - here: DK sealing cone system
    Guaranteed leak-proof

    Waterproof and gas impermeable, fire-resistant, soundproof and diffusion-proof as well as approved for drinking water.

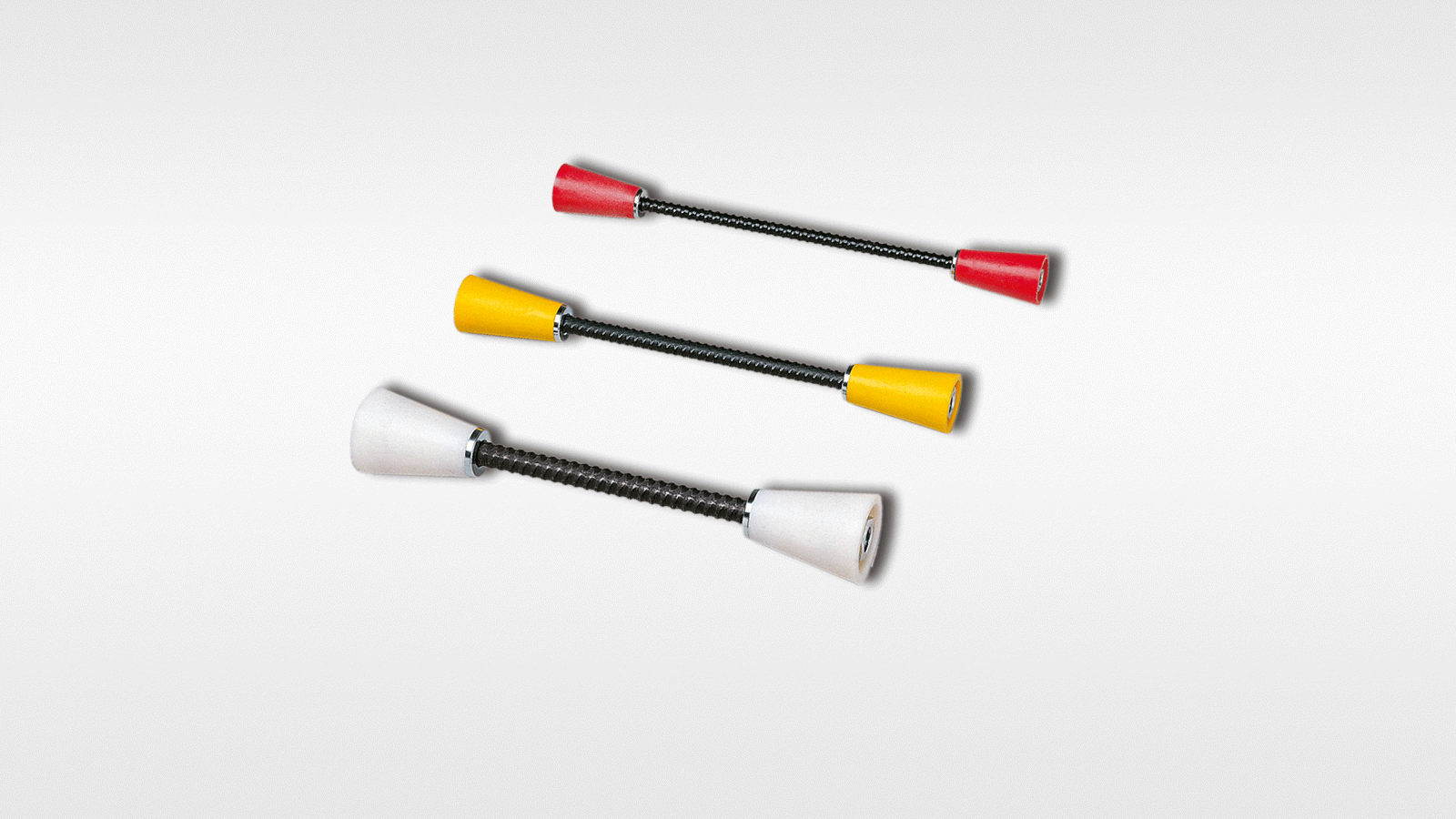

  • PERI Tie Technology: For all wall formwork - here: The SK tie cone system
    Appropriate availability

    Cones and spacer tubes for a range of tie diameters are available.

Product Data Sheet

Technical specifications
Material
Concrete cones and sealing adhesive
Technical specifications
Material
Concrete cones and sealing adhesive
Standard applications
Compatible with
MAXIMO frame formwork, VARIO GT 24 column formwork, Rundlfex
Standard applications
Compatible with
MAXIMO frame formwork, VARIO GT 24 column formwork, Rundlfex

Variant DK

Technical specifications
System type
DK anchor technology
Anti-corrosion and surface coating
Waterproof concrete, noise and fire protection walls for wall thicknesses up to 60 cm
Preparation
Magnetic cone for MAXIMO, or two reusable DK sealing cones with a sleeve and a reusable tie rod
Load
Rigidity: Hardness: 100 N/mm² on average
Other
Impermeable to water, impermeable to gas, fire-resistant, soundproof
Technical specifications
System type
DK anchor technology
Anti-corrosion and surface coating
Waterproof concrete, noise and fire protection walls for wall thicknesses up to 60 cm
Preparation
Magnetic cone for MAXIMO, or two reusable DK sealing cones with a sleeve and a reusable tie rod
Load
Rigidity: Hardness: 100 N/mm² on average
Other
Impermeable to water, impermeable to gas, fire-resistant, soundproof
Standard applications
Other
Suitable for exposed concrete
Standard applications
Other
Suitable for exposed concrete

Variant SK

Technical specifications
Material
Concrete cones and sealing adhesive
Anti-corrosion and surface coating
Waterproof concrete, sound and fire resistant F90 for wall thicknesses up to 60 cm, impermeable to gas
Load
Tensile and compressive force: 90 - 250 kN
Other
Reusable SK cones connected to duct and reusable tie rod or a concreted tie rod
Technical specifications
Material
Concrete cones and sealing adhesive
Anti-corrosion and surface coating
Waterproof concrete, sound and fire resistant F90 for wall thicknesses up to 60 cm, impermeable to gas
Load
Tensile and compressive force: 90 - 250 kN
Other
Reusable SK cones connected to duct and reusable tie rod or a concreted tie rod
Standard applications
Other
Suitable for security wings and fair-faced concrete
Standard applications
Other
Suitable for security wings and fair-faced concrete
