The tubular steel prop for daily use on construction sites

PEP Alpha-2 Slab Props

The tubular steel props for day-to-day use on construction sites

PEP Alpha-2 construction props in both B and D classification fulfil the DIN EN 1065 load-bearing capacity requirements. These prop types cover 80% of the general range of applications for tubular steel props in residential and light industrial construction. PERI offers the PEP Alpha-2 slab props exclusively for sale at a highly efficient price-performance ratio. The maximum load-bearing capacity is up to 36.1kN.

PEP Alpha-2 slab props in action

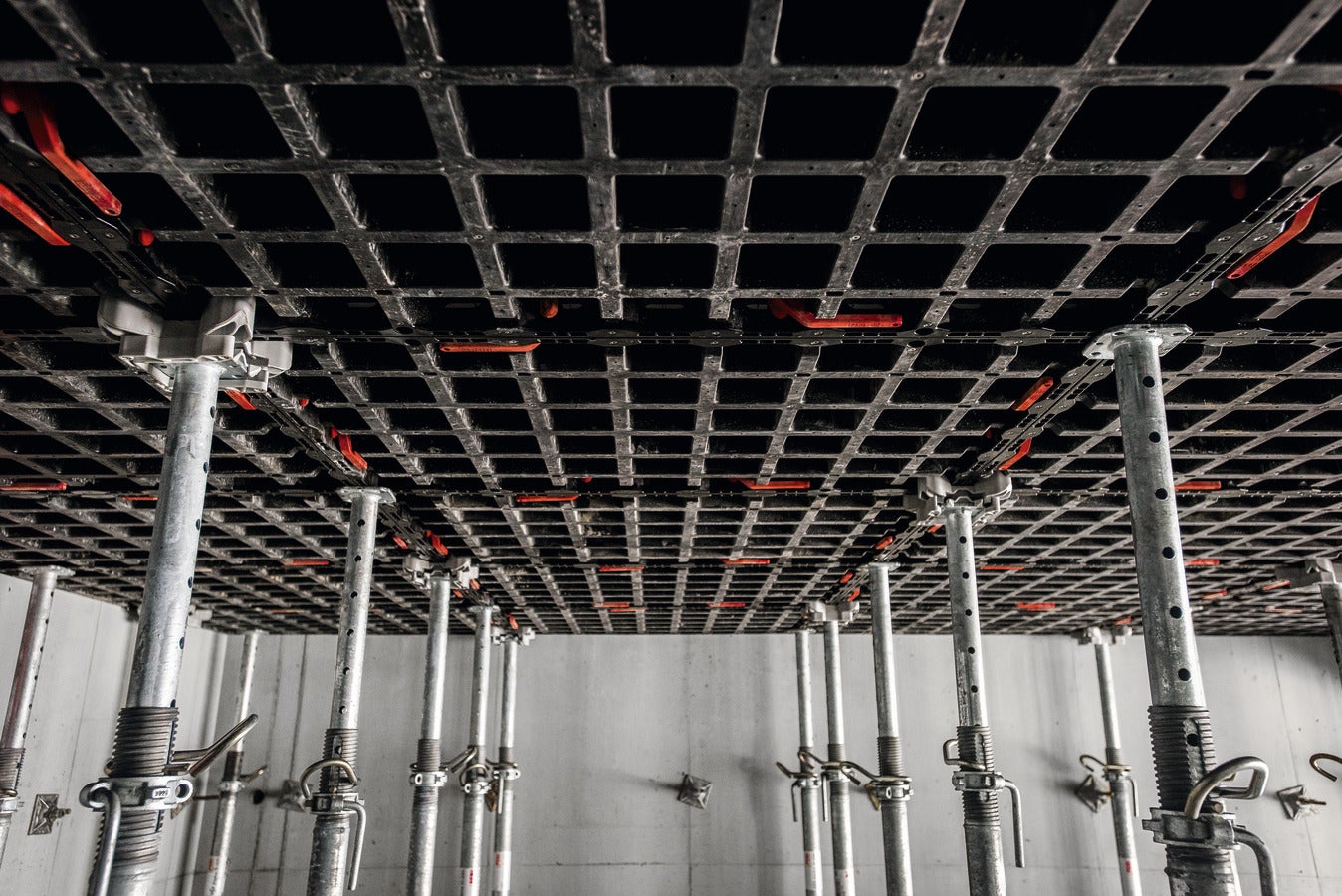

  • All parts of the PEP Alpha slab prop are hot-dip galvanized. Robust and tested design according to DIN EN 1065.
    Durable & Robust

    All parts of the PEP Alpha-2 slab prop are hot-dip galvanized with a robust and proven design according to DIN EN 1065.

  • The tubular steel prop for daily use on construction sites
    High security

    Safe working is guaranteed at all times due to safety clearance against crushing injuries of the hand and the anti-drop device for the inner tube.

Product Data Sheet

Technical specifications
System type
Steel Supports
Material
Steel
Anti-corrosion and surface coating
All parts of the PEP Alpha-2 Slab Prop are hot-dip galvanized
Fulfilled standard
Maximum support load 36.1 kN - the load-bearing capacity is therefore above the European standard for supports according to DIN EN 1065
Other
Adjusting nut is positioned at an ergonomic height of 1.70 m or 2.00 m with manual crush protection with 10 cm free space to protect against injuries and a large adjustment range of the adjusting nut of 12 cm
Technical specifications
System type
Steel Supports
Material
Steel
Anti-corrosion and surface coating
All parts of the PEP Alpha-2 Slab Prop are hot-dip galvanized
Fulfilled standard
Maximum support load 36.1 kN - the load-bearing capacity is therefore above the European standard for supports according to DIN EN 1065
Other
Adjusting nut is positioned at an ergonomic height of 1.70 m or 2.00 m with manual crush protection with 10 cm free space to protect against injuries and a large adjustment range of the adjusting nut of 12 cm
System accessory
Other
Tripods or frames as installation aids
System accessory
Other
Tripods or frames as installation aids

Variant PEP Alpha-2 D-300

Technical specifications
Weight
14,7 kg
Load
Maximum load capacity: 36,1 kN
Technical specifications
Weight
14,7 kg
Load
Maximum load capacity: 36,1 kN

Variant PEP Alpha-2 D-350

Technical specifications
Weight
18,4 kg
Load
Maximum load capacity: 36,1 kN
Technical specifications
Weight
18,4 kg
Load
Maximum load capacity: 36,1 kN

Variant PEP Alpha-2 B-300

Technical specifications
Weight
13,1 kg
Load
Maximum load capacity: 32,4 kN
Technical specifications
Weight
13,1 kg
Load
Maximum load capacity: 32,4 kN

Variant PEP Alpha-2 B-350

Technical specifications
Weight
15,0 kg
Load
Maximum load capacity: 34,9 kN
Technical specifications
Weight
15,0 kg
Load
Maximum load capacity: 34,9 kN
Show More
Show Less
##salesContact.expertImageAltLabel## Interested in using PEP Alpha-2 Slab Props for your project?

Contact us
Free Consultation
Find consultant

Contact us – we will be happy to help you.

Downloads

See our brochures below
