The flexible and adjustable slab formwork with VT 20K or GT 24 Formwork Girder

MULTIFLEX Girder Slab Formwork

A versatile girder slab formwork for slabs up to 1m thickness

The main components of the MULTIFLEX system are the VT 20K or GT 24 Formwork Girders. As the main and cross beams, their position and spacing as well as the formlining can be freely selected providing maximum flexibility on site regardless of the structure being built.

The high load-bearing GT24 Formwork Girders enables large spans for the main and cross beams and can be an ideal option for complicated ground plans, slabs with offsets or integrated down stand beams and use in confined spaces.


MULTIFLEX in action

  • Watch the video to find out more

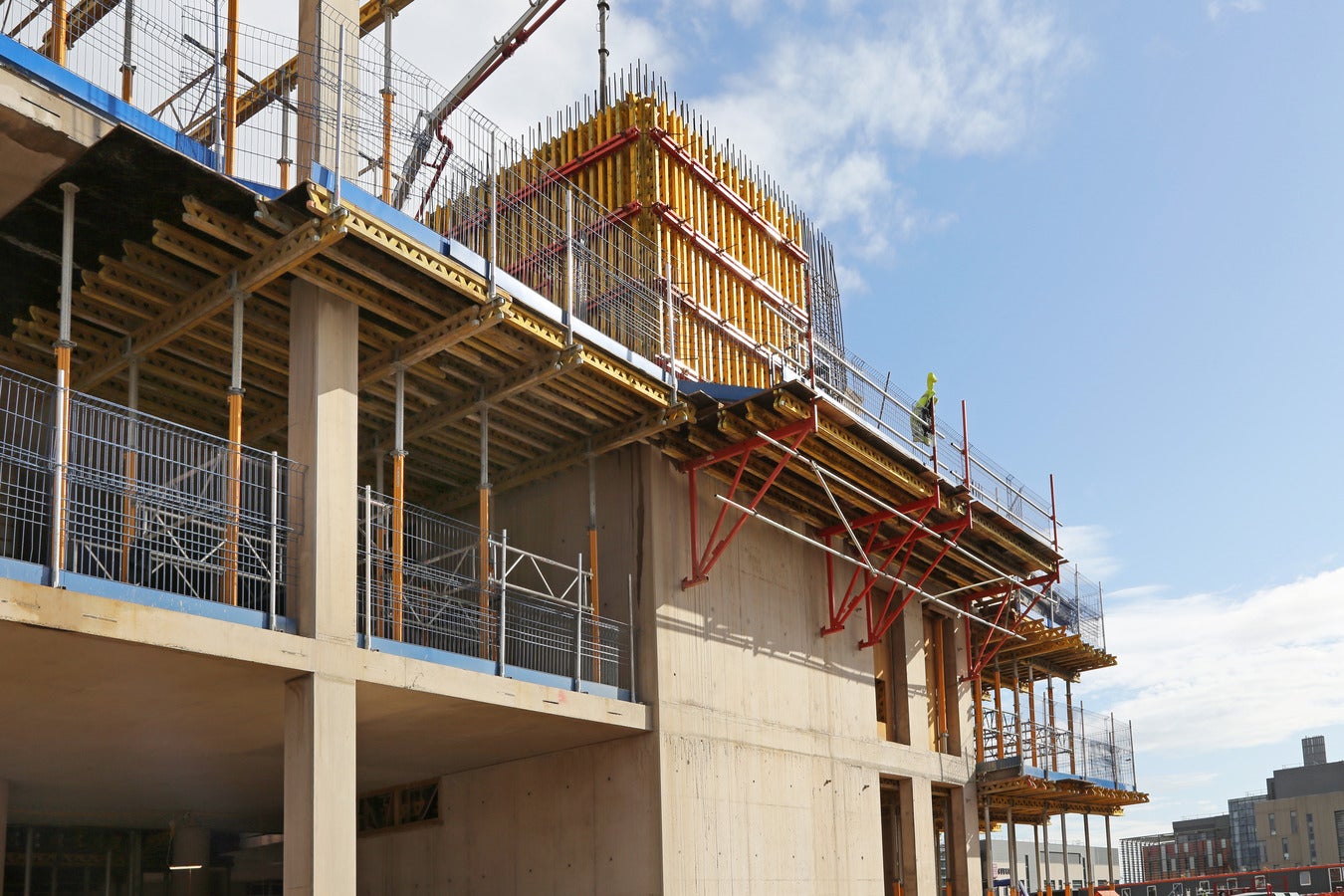

  • For all ground plans through the variable positioning of the girders – also polygonally, trapezoidal or overlapping.
    Completely flexible to match your structure

    Via the variable positioning of the girders including polygonally, trapezoidal or overlapping



    Project: Cardiff University - Innovation Campus

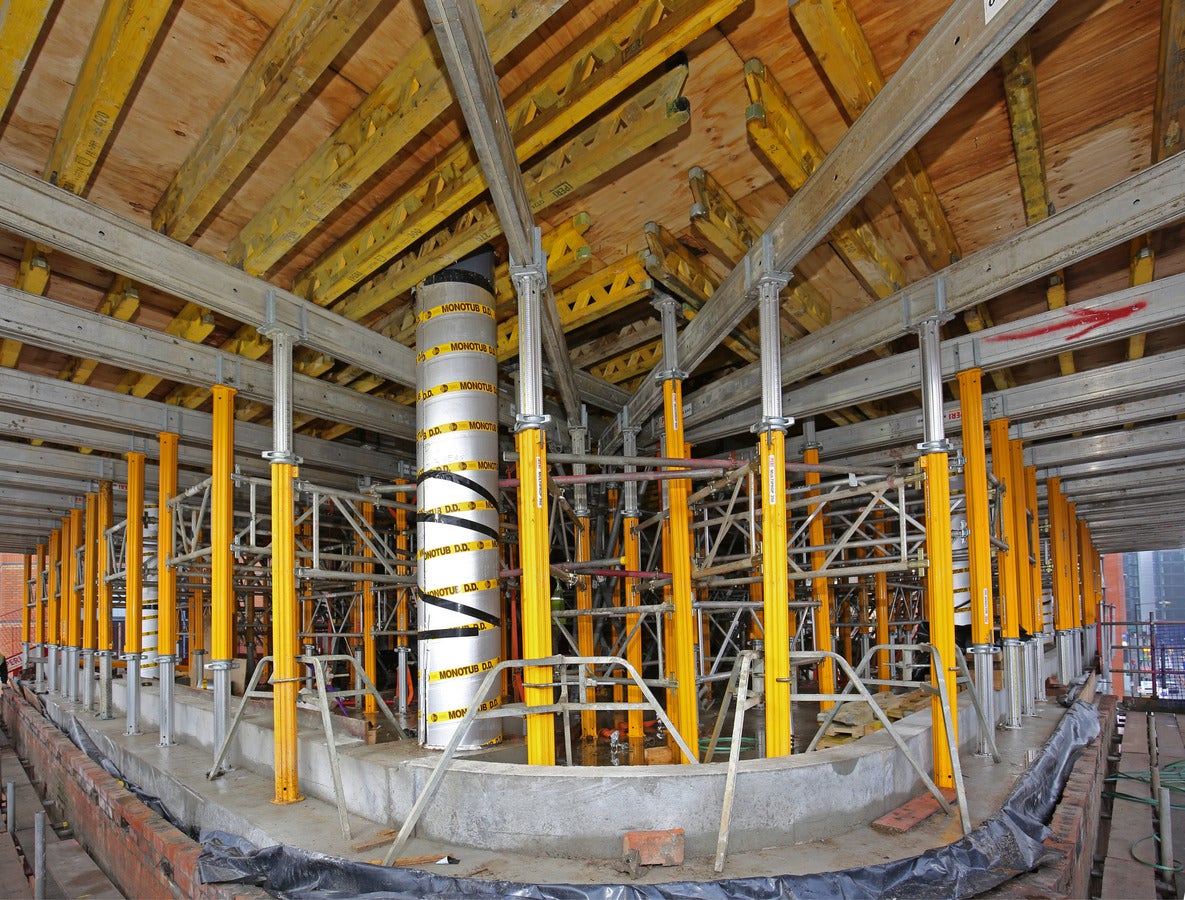

  • For all surface requirements easily adaptable with freely selectable formlining according to the required quality of the slab underside.
    For any concrete finish type

    Freely selectable formlining ensures any finish is possible form basic through to plain and special



    Project: Riverside House

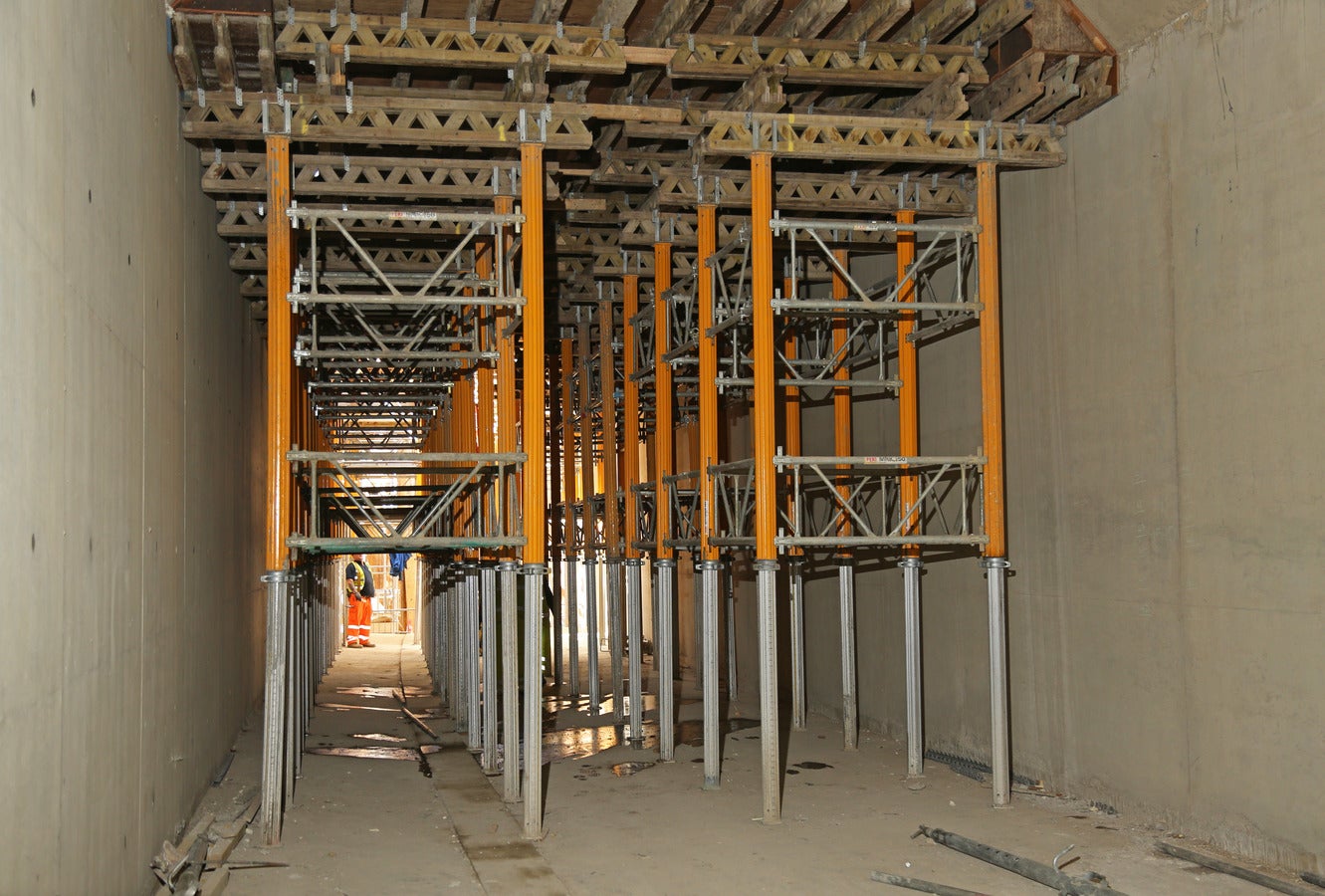

  • Optimized use of materials through any combination of GT 24 and VT 20K Formwork Girders as well as a freely selectable girder arrangement.
    Cost-effective with flexible configurations

    Any combination of GT 24 and VT 20K Formwork Girders as well as a freely selectable girder arrangements is possible to optimise existing materials you may own, or the rental budget for your project



    Project: Luton DART Rail Link

Product Data Sheet

Technical specifications
System type
Girder slab formwork
Material
Wooden carrier
Formlining
Free choice of formlining
Installation time
0.27-0.53 hrs/m²
Fulfilled standard
Permissible characteristic column load: 22 kN or 28 kN, depending on the beam
Slab thickness
Up to 1.00 m
Other
Free column grid Quick and easy dimensioning using table slides or table books

Technical specifications
System type
Girder slab formwork
Material
Wooden carrier
Formlining
Free choice of formlining
Installation time
0.27-0.53 hrs/m²
Fulfilled standard
Permissible characteristic column load: 22 kN or 28 kN, depending on the beam
Slab thickness
Up to 1.00 m
Other
Free column grid Quick and easy dimensioning using table slides or table books

Variante VT 20K

Show More
Show Less

Additional information

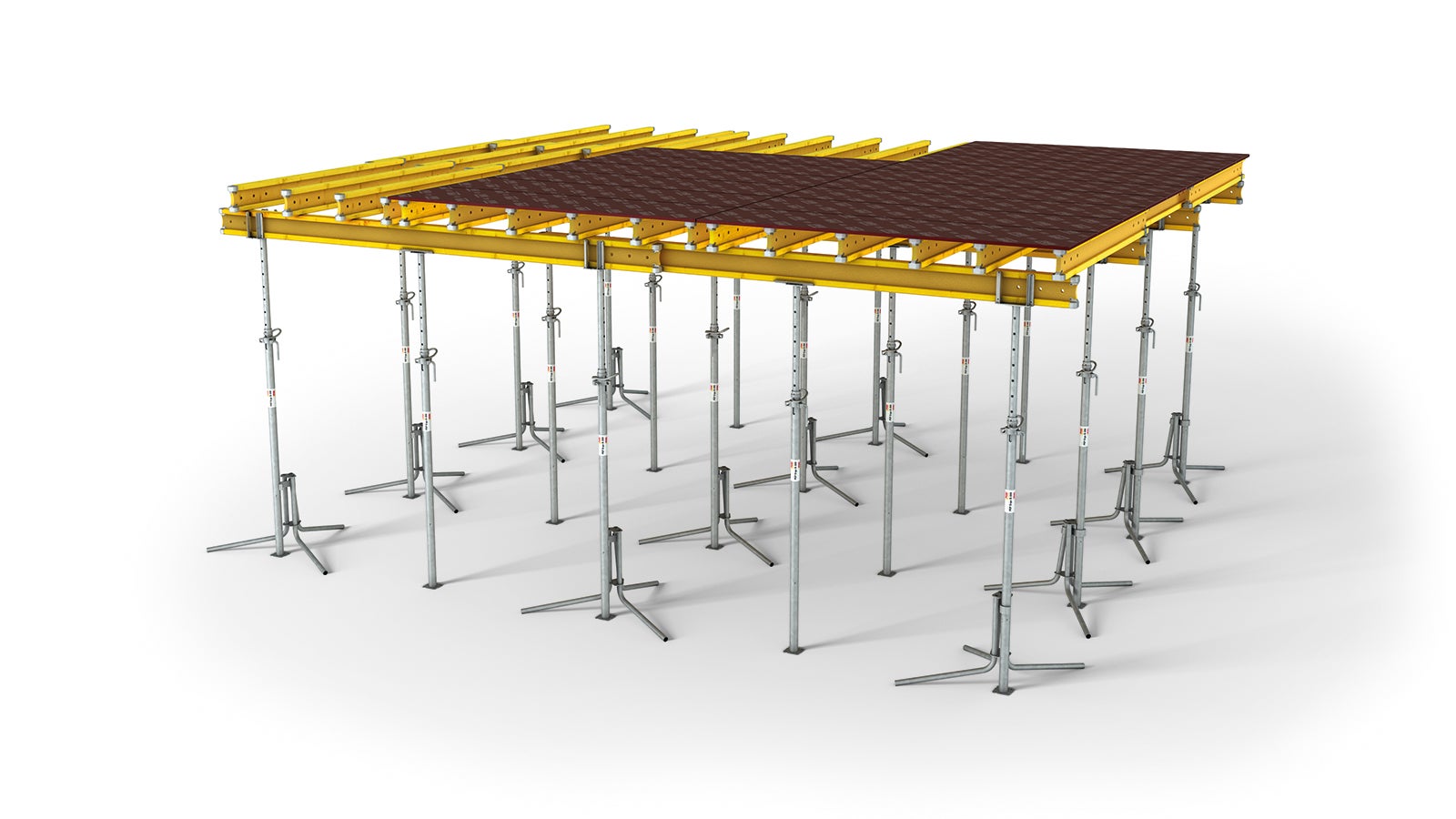

The flexible and adjustable slab formwork with GT 24 Formwork Girder
The flexible and adjustable slab formwork with GT 24 Formwork Girder
The flexible and adjustable slab formwork with GT 24 Formwork Girder
The flexible and adjustable slab formwork with GT 24 Formwork Girder

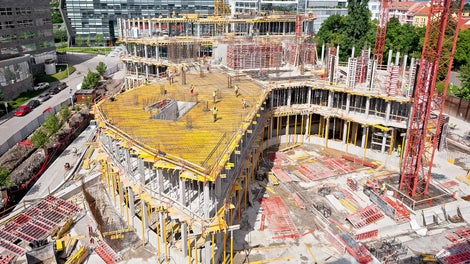

MULTIFLEX can be adapted to suit all ground plans. The overlapping of the slab girders and change of direction of the main beams ensure maximum fl exibility.
MULTIFLEX can be adapted to suit all ground plans. The overlapping of the slab girders and change of direction of the main beams ensure maximum fl exibility.

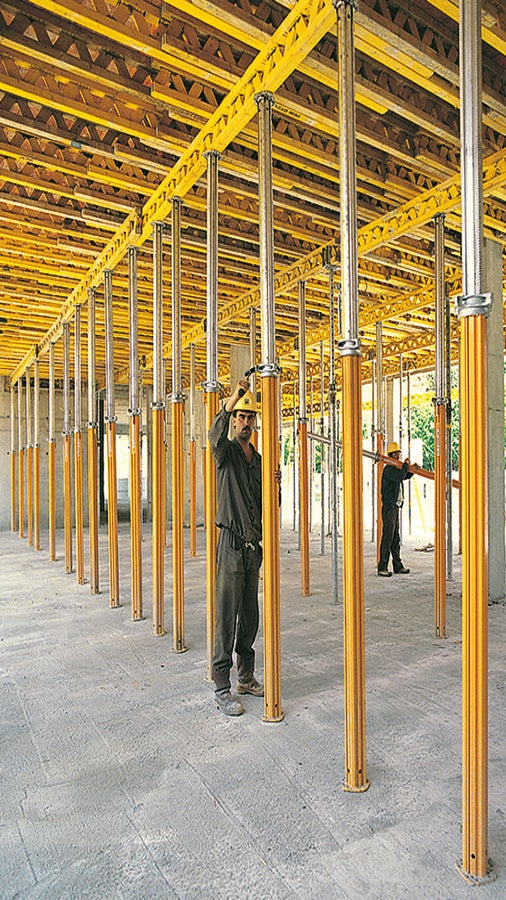

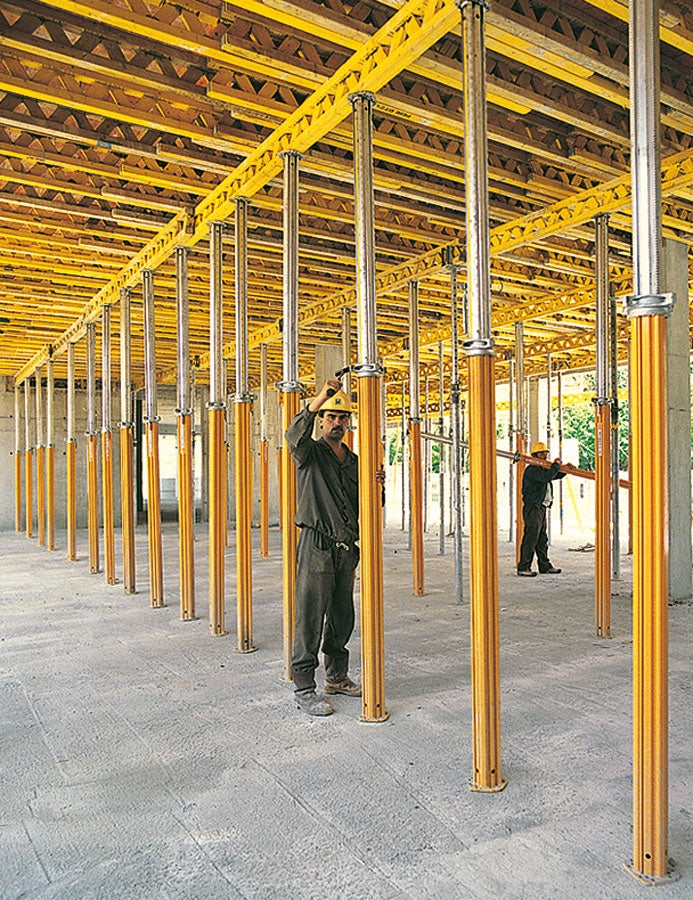

With the PERI MULTIPROP, the high permissible GT 24 support reaction of 28 kN can also be used with maximum extension lengths.
With the PERI MULTIPROP, the high permissible GT 24 support reaction of 28 kN can also be used with maximum extension lengths.

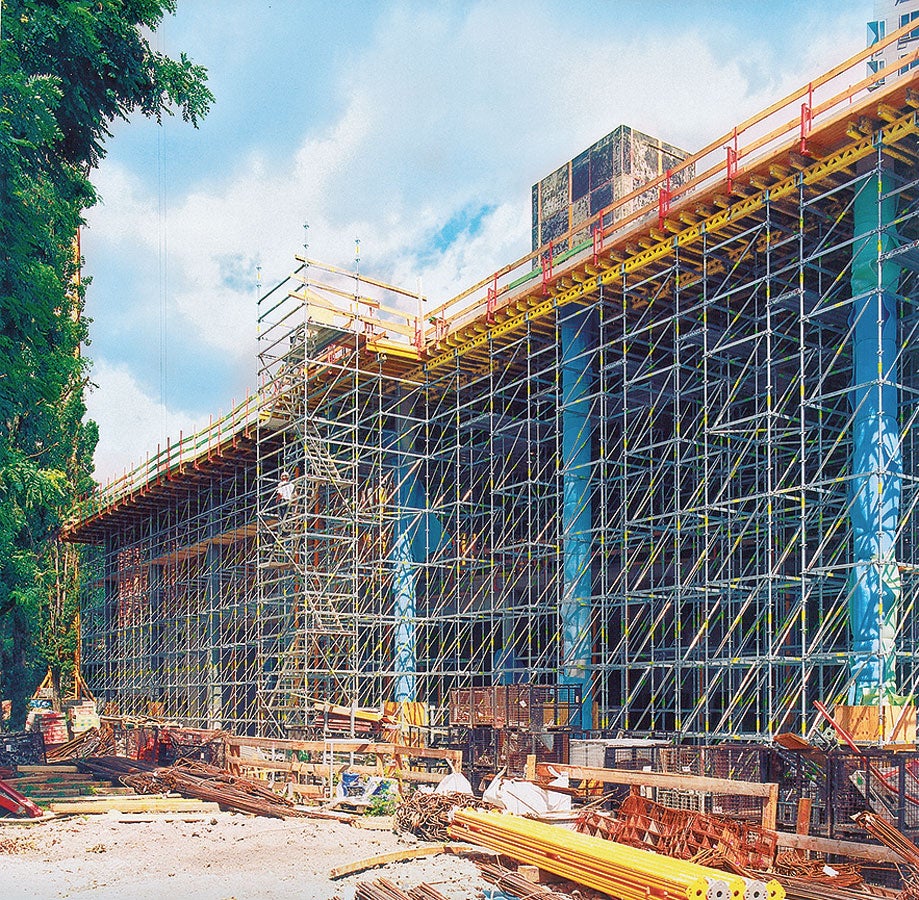

14.00 m high PERI UP birdcage scaffolding as load-bearing substructure for the MULTIFLEX girder slab formwork.
14.00 m high PERI UP birdcage scaffolding as load-bearing substructure for the MULTIFLEX girder slab formwork.
The choice of girder is based on project-specific requirements: the GT 24 Lattice Girder allows large spans and reduces the number of parts to be moved. The VT 20K Solid Web Girder is the cost-effective solution for smaller slab thicknesses.
The flexible and adjustable slab formwork with GT 24 Formwork Girder
MULTIFLEX can be adapted to suit all ground plans. The overlapping of the slab girders and change of direction of the main beams ensures maximum flexibility.
Combined with MULTIPROP, GT 24 MULTIFLEX configurations can support 28kN with maximum extension lengths.
A further application is in combination with PERI UP birdcage scaffolding as a load-bearing/shoring structure for the MULTIFLEX girder slab formwork, in this case at 14m height.
