GT 24 Schalungsträger: The versatile lattice girder with high load-bearing capacity

GT 24 Girder

The go-to versatile construction girder

The GT 24 formwork girder is an iconic construction product used in various forms the world over for more than 50 years.

Strong, dependable, reusable for many years and highly versatile, the GT 24 provides high load-bearing capacity and rigidity.

For use in wall, column and slab formwork systems or with special formwork, the GT 24 can help you reduce material requirements, replenishment and assembly/dismantling time on site

GT24 Girder in action

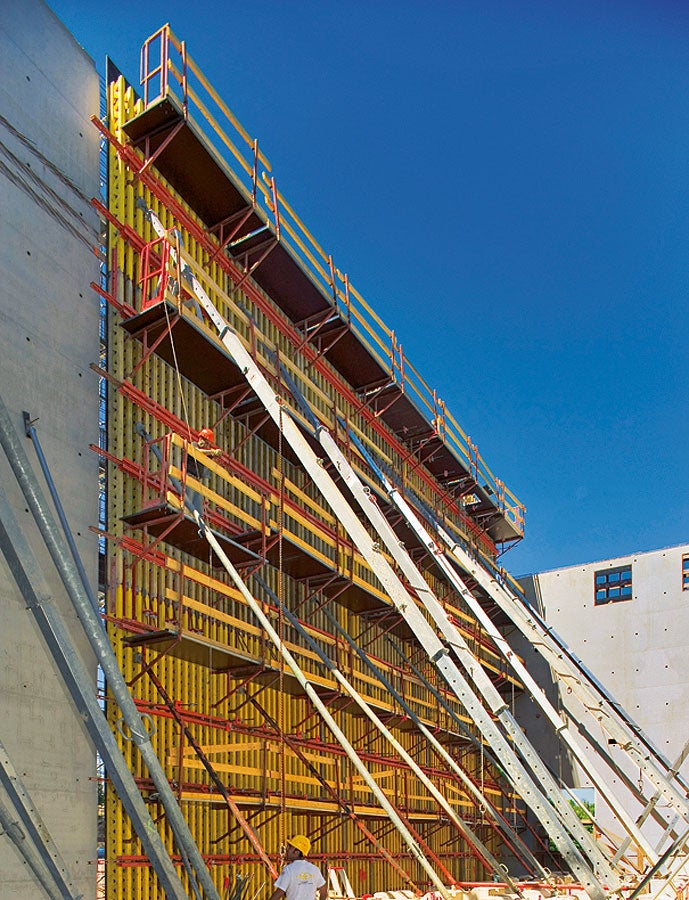

  • GT 24 formwork girder - No matter how high, the GT 24 makes it possible - until 17,80 m.
    Depend on the GT 24

    Thanks to a tried-and-tested robust design with girder nodes and mini-dovetail jointing to ensure no trapped pockets of moisture

  • GT 24 Schalungsträger: The versatile lattice girder with high load-bearing capacity
    High load-bearing

    The lattice construction with a 24cm overall height can withstand heavy loads and wide spans

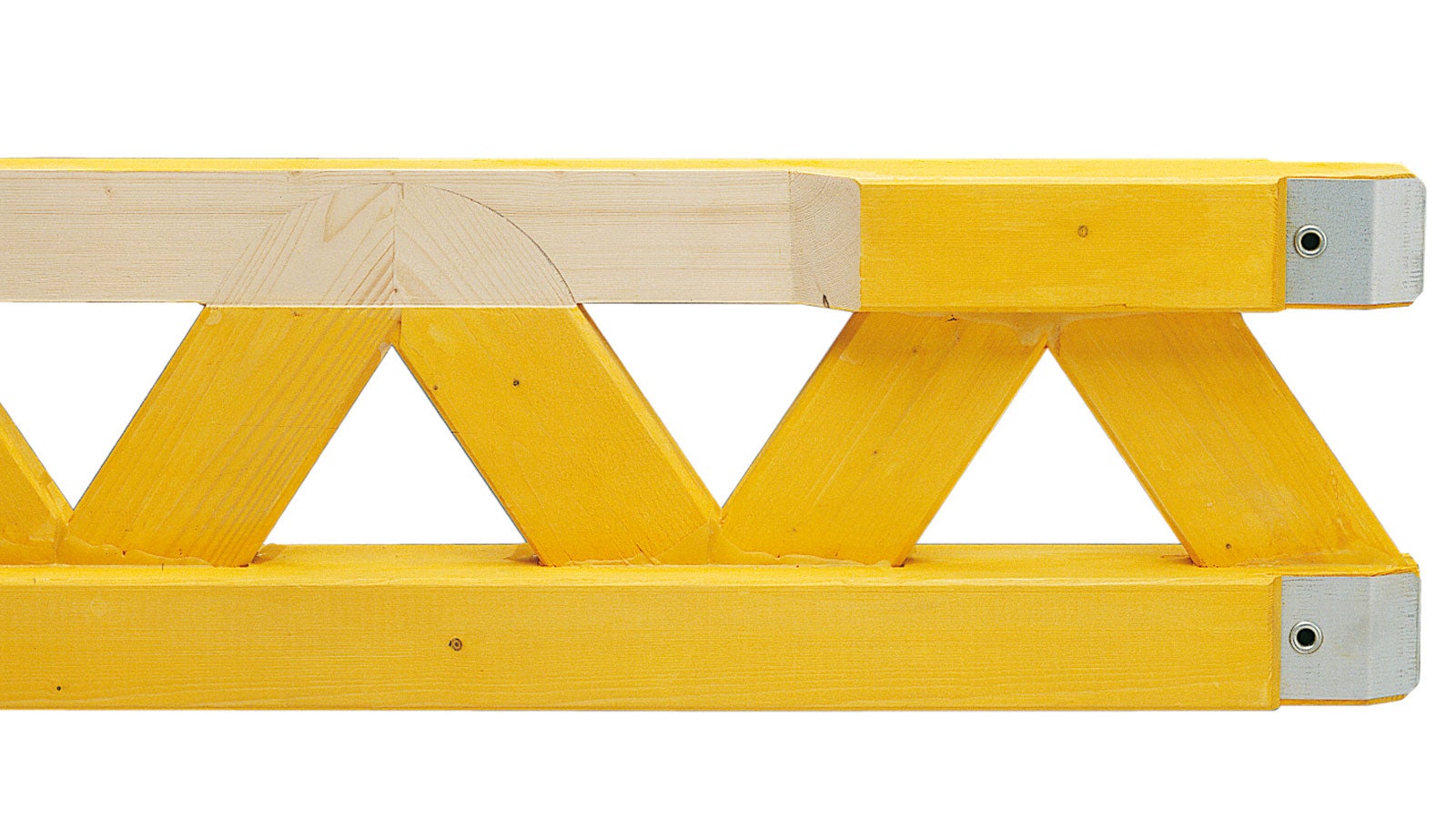

  • GT 24 formwork girder: The struts penetrate the chords along the whole cross-section. There are practically no cavities which could collect and hold moisture.
    Compatible

    Use the same girder for multiple applications, saving you time, space and costs through easy connection of accessories

Product Data Sheet

Technical specifications
System type
Wooden Formwork Beam
Weight
5,4 kg/m
Load
Permissible shear force: 13,0 kN,
Permissible bending moment: 7,0 kNm,
Allowed bearing strength: 28 kN
Technical specifications
System type
Wooden Formwork Beam
Weight
5,4 kg/m
Load
Permissible shear force: 13,0 kN,
Permissible bending moment: 7,0 kNm,
Allowed bearing strength: 28 kN
Show More
Show Less

Additional information

GT 24 Schalungsträger: The versatile lattice girder with high load-bearing capacity
GT 24 Schalungsträger: The versatile lattice girder with high load-bearing capacity
GT 24 formwork girder: The struts penetrate the chords along the whole cross-section. There are practically no cavities which could collect and hold moisture.
GT 24 formwork girder: The struts penetrate the chords along the whole cross-section. There are practically no cavities which could collect and hold moisture.

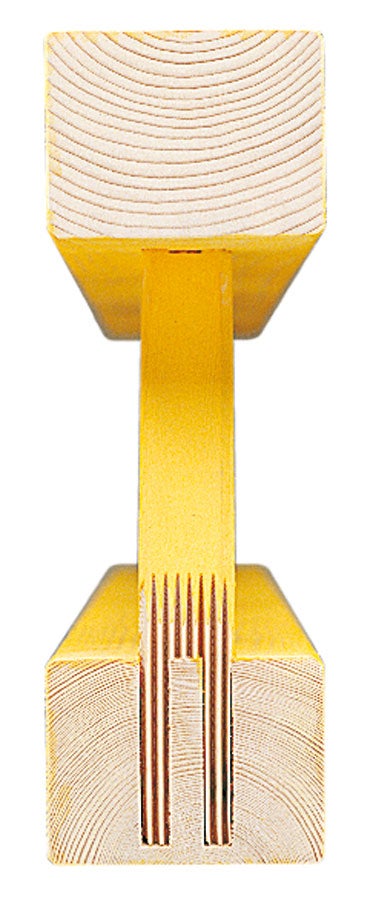

GT 24 Formwork Girder - The girder nodes with mini-dovetail jointing guarantee the durability of the GT 24 lattice girder.
GT 24 Formwork Girder - The girder nodes with mini-dovetail jointing guarantee the durability of the GT 24 lattice girder.
GT 24 formwork girder - No matter how high, the GT 24 makes it possible - until 17,80 m.
GT 24 formwork girder - No matter how high, the GT 24 makes it possible - until 17,80 m.

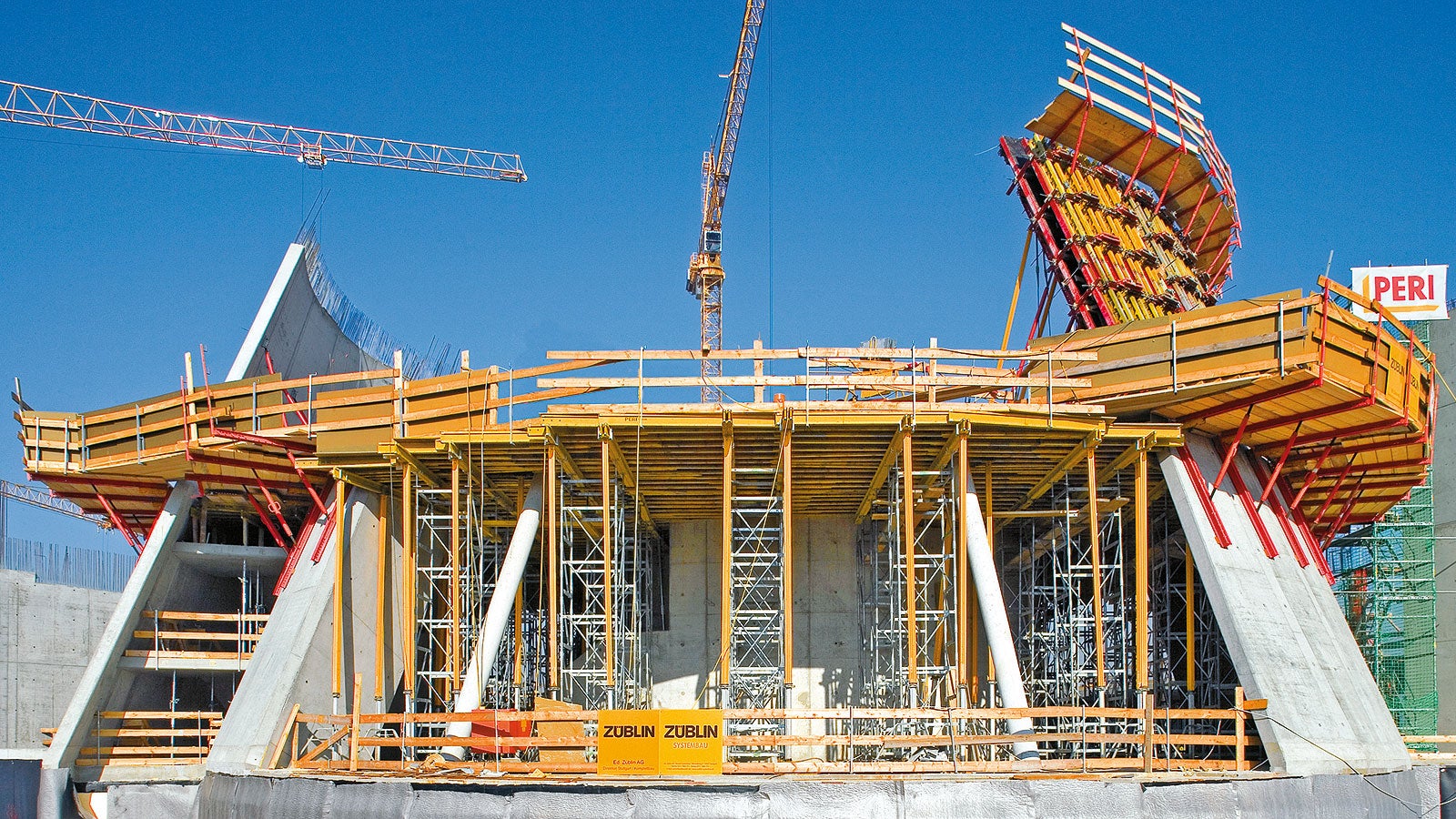

VT 20K Formwork Girder: The VT 20K as secondary beam on GT 24 twin main girders in industrial construction.
VT 20K Formwork Girder: The VT 20K as secondary beam on GT 24 twin main girders in industrial construction.
The versatile lattice girder with high load-bearing capacity.

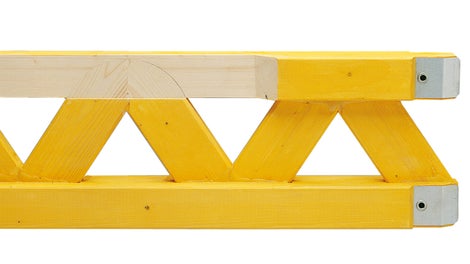

The struts penetrate the chords along the whole cross-section. There are practically no cavities which could collect and hold moisture.
The girder nodes with mini-dovetail jointing guarantee the durability of the GT 24 lattice girder.
A highly versatile and dependable girder for use time after time after time
Consider the VT 20K as a secondary beam with the GT 24 as a cost effective solution
