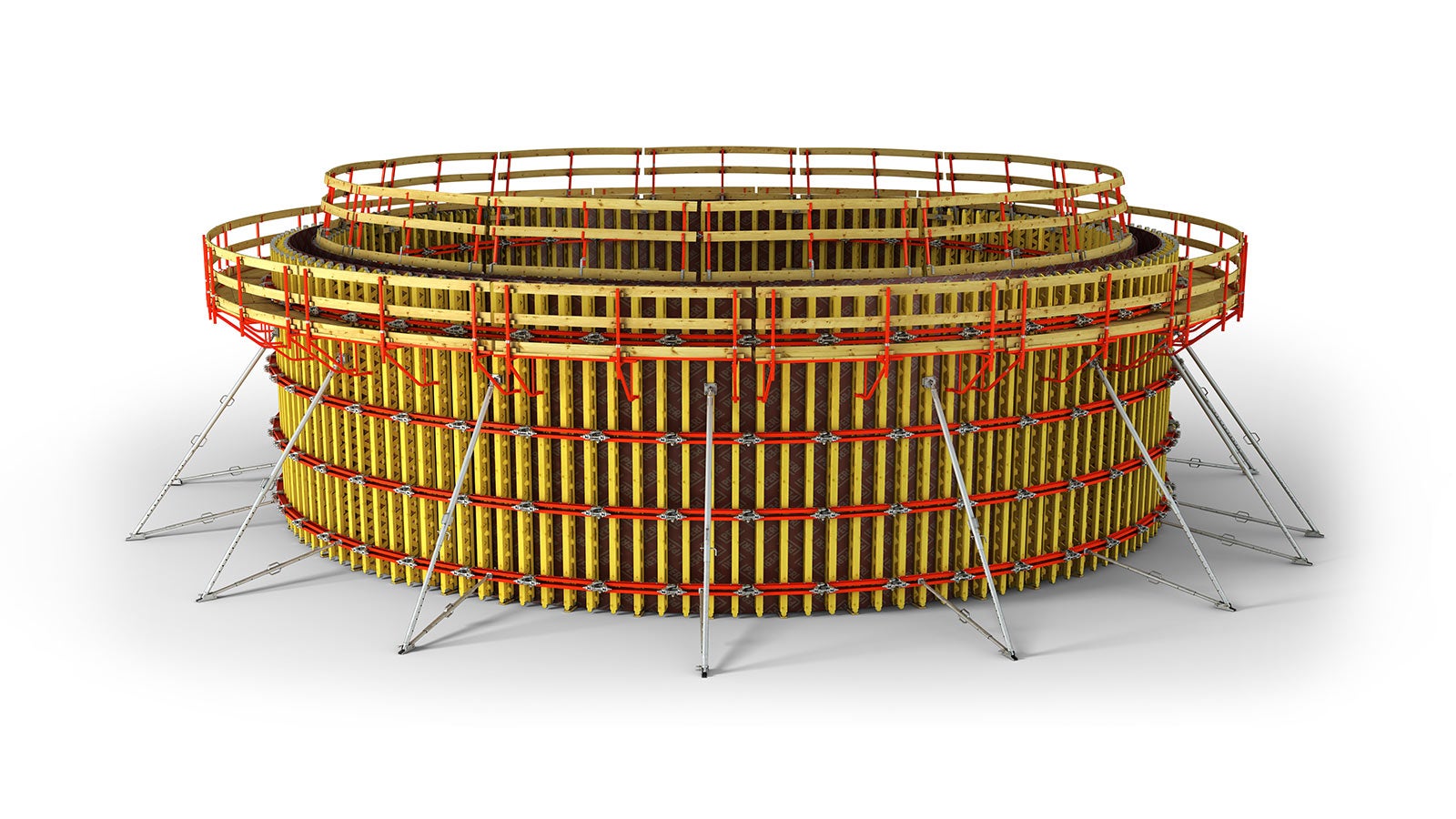

Economical forming without ties, for all radii, also with special formwork

GRV Articulated Waler Circular Formwork

For forming circular structures without the use of ties

The GRV Articulated Waler Circular Formwork produces external ring tension and internal compression to secure the formwork through the closed ring of walers.

The system allows circular structures to be constructed without tie points resulting in substantial savings such as for water-containing structures where the alternative would be watertight anchor points.

GRV Articulated Waler Circular Formwork in action

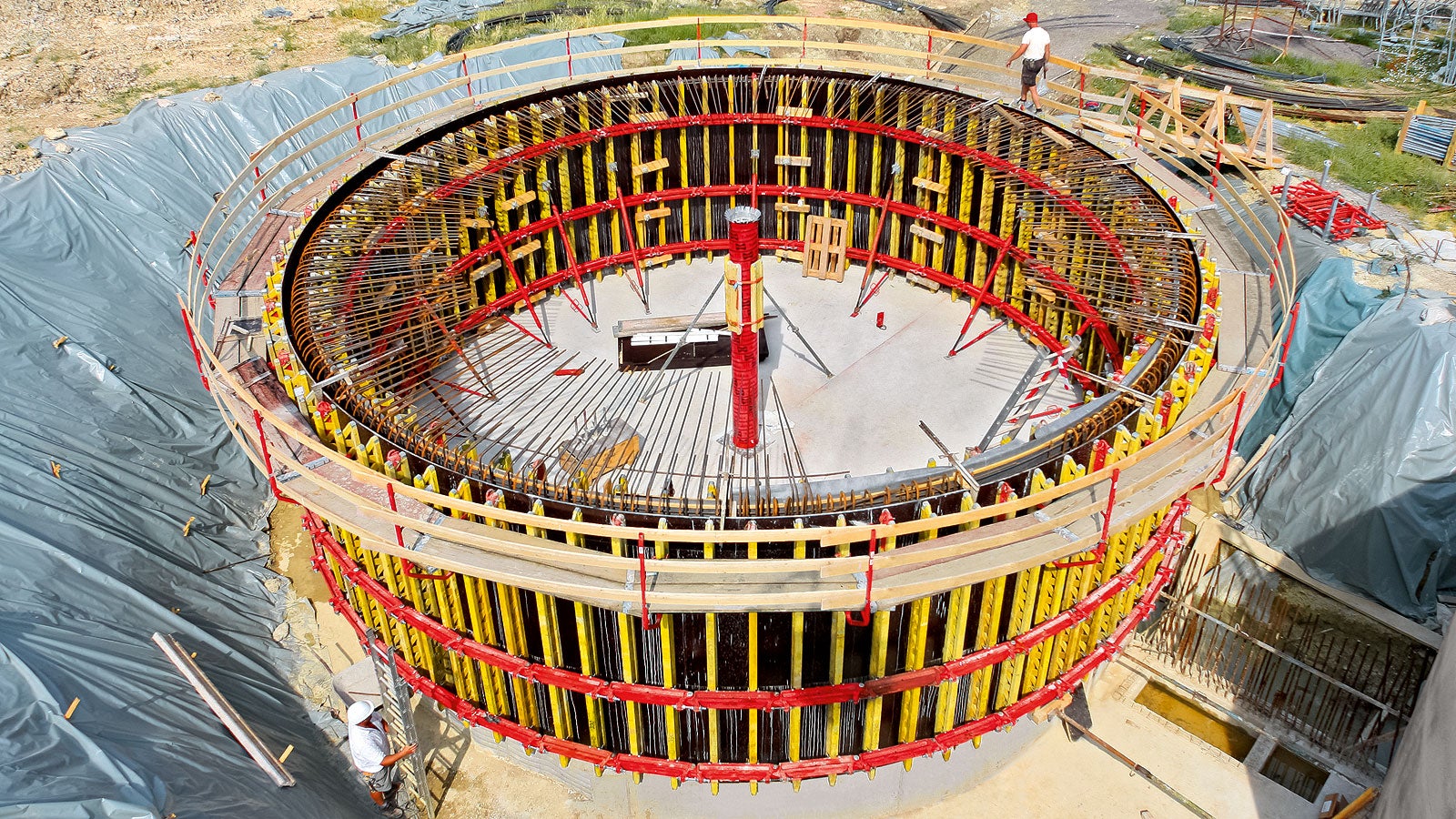

  • GRV realizes both large and small radii via a closed formwork ring without any tie points.
    Forming without ties

    Due to the closed ring of walers.

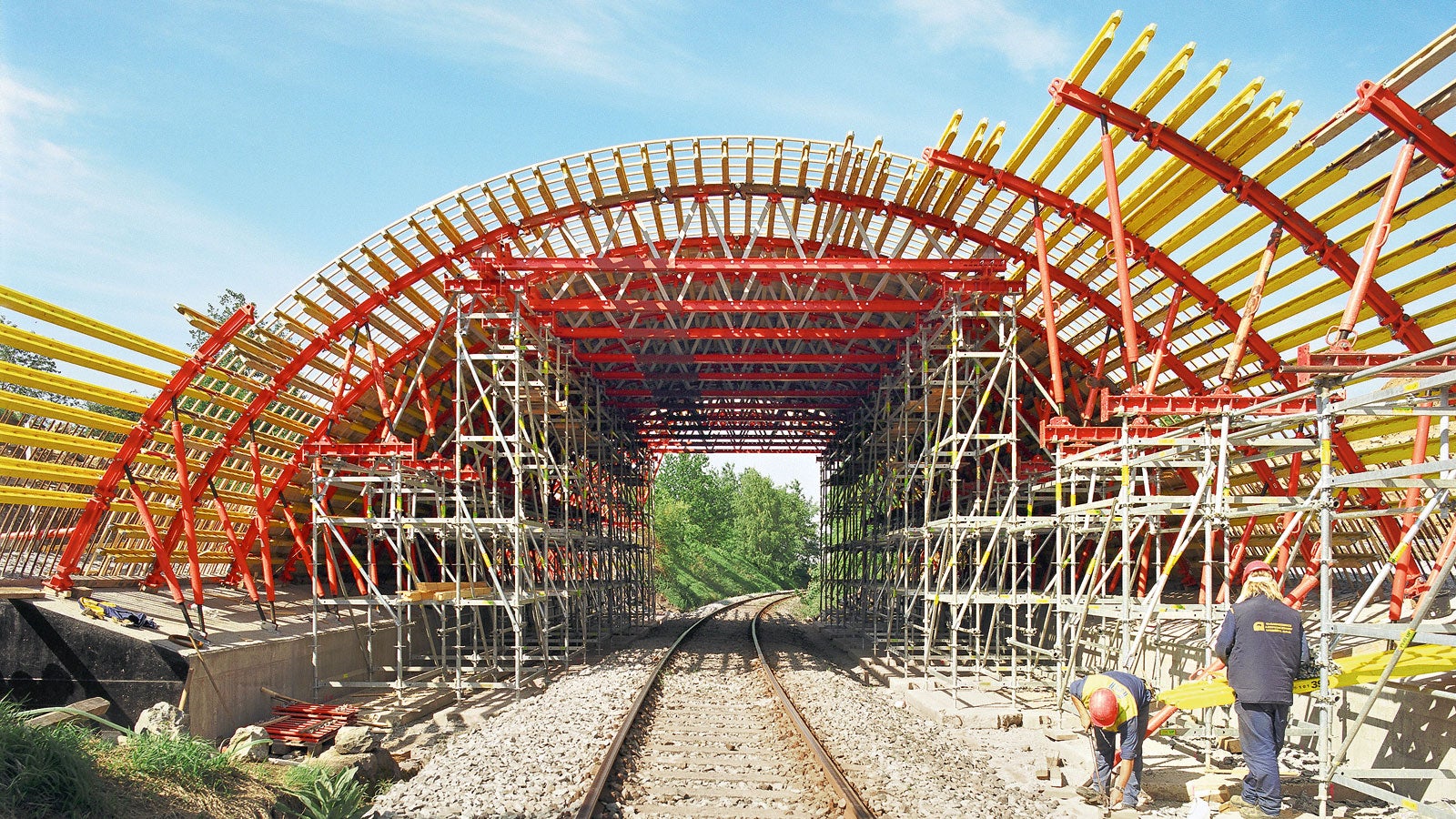

  • PERI GRV articulated waler is frequently used in combination with GT 24 lattice girders for a wide range of bridges and arched formwork.
    A versatile system suitable for many applications

    Such as containing structures for liquids and gases, and many variations of arched bridge

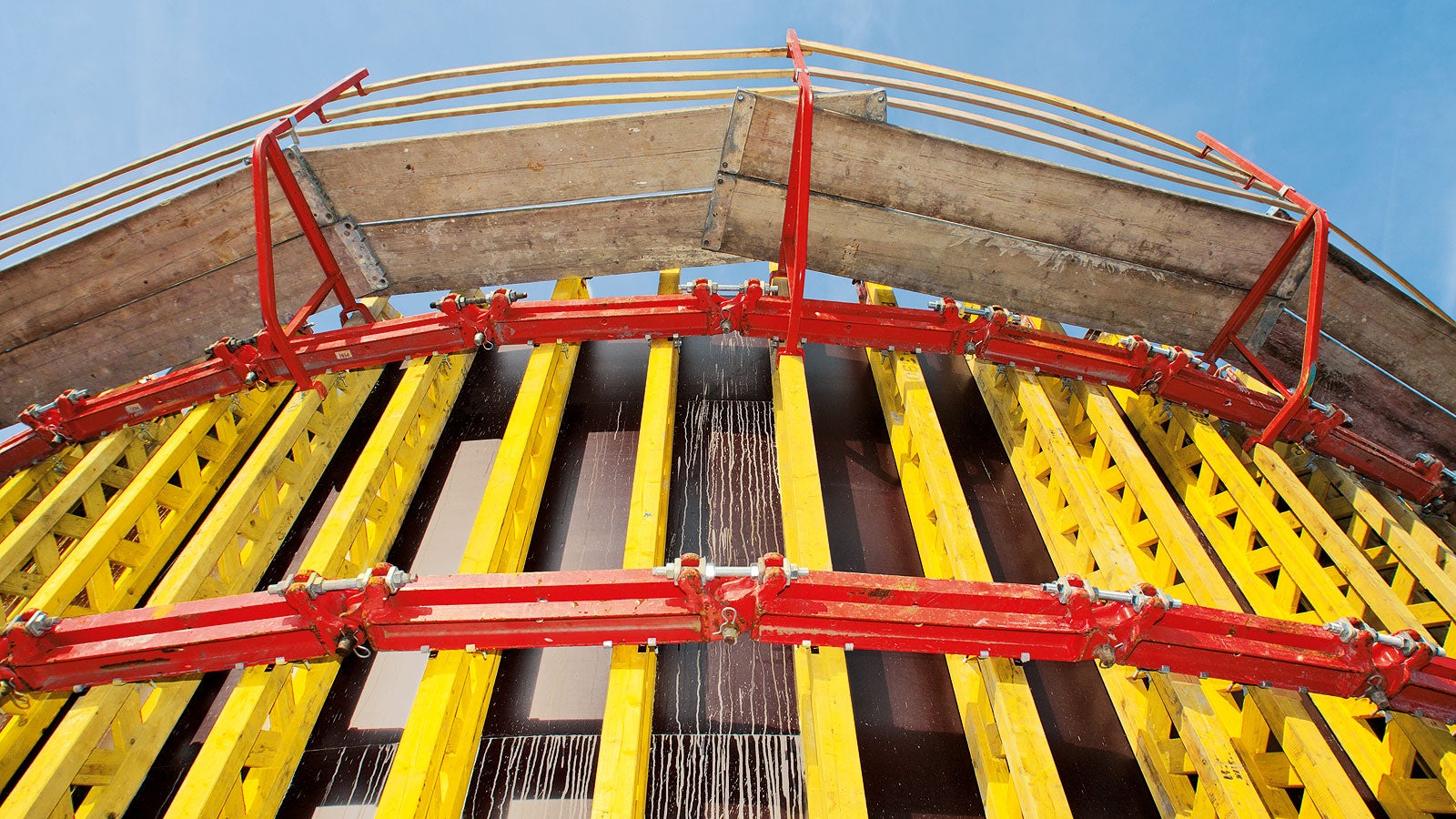

  • GRV can be used for all radii. By means of the articulated connections of the GRV walers, small radii of 0.60 m can also be shuttered.
    Continuously adjustable

    for all internal radii greater than 0.90 m.
